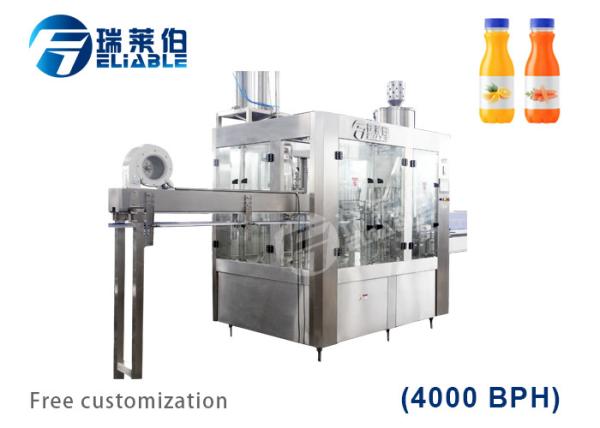

High Power Auxiliary Equipment Fruit Juice And Tea Filling Machine

Juice and tea beverage

Juices and teas are one of the fastest growing beverage segments worldwide, with healthier lifestyles, urbanisation and improved retail infrastructure all driving this development.

Fruit Juice And Tea Filling Machine Process:

The fan blows the bottle through the air duct to the No. 1 card bottle plate, and the bottle is brought to the bottle washer by the No. 1 card bottle plate.
Washing part: It is mainly composed of a bottle head, an upper disc and a guide rail. The bottle head rotates with the upper disc, and the bottle neck clamp is used to clamp the filling bottleneck, and the rail is flipped by one hundred and eighty degrees, rinsed and dripped, then flip 180°.
Filling part:It mainly consists of water tank, filling valve, guide rail and card bottle lifting device. The No. 2 card bottle plate is fed into the filling machine, the bottle bottle plate is filled to hold the bottle neck, rotates with the water tank, etc., and the filling valve is opened by sliding on the guide bar according to the guide rail, and the filling valve is lowered after the filling is completed. Filling valve, filling valve closes by itself. The bottle is sent out of the filling machine with the No. 3 card bottle.
Capping part:The capping mechanism is composed of three parts: a capper, a capping machine and a capper. The bottle is fed by the No. 3 card bottle plate, the card cover is completed, and the cap plate is sent out by the No. 4 card bottle plate.
Recirculation tank: The finished water returned from the filling valve flows to the reflux tank, and then the return water is pumped into the heating device through the plastic pump of the reflux tank, heated to the required temperature and then flows through the main pipe to the filling barrel. There is a certain negative pressure in the return tank to facilitate the return of the liquid in the filling valve.

Fruit Juice And Tea Filling Machine Main features:

• It adopts technology of air conveyor direct connect with bottle infeed starwheel instead of screw and conveyor. It is easier and more simple to change over bottle size.
• It adopts high precision, high speed and quantitative filling valve, and the liquid level is accurate without liquid loss to ensure excellent filling quality.
• The capping head adopts constant torque device to ensure the sealing quality.
• The sorting system is efficient, with perfect cap feeding and protection device.
• It is simple and convenient to change bottle type. It only needs to replace the bottle star wheel can be realized without adjusting the height of equipment.
• The filling system adopts neck handling technology to avoid the secondary pollution of the bottle mouth.
• Control system has the functions of automatic control of the water level, lack of cap detection, self stop of washing bottle and output counting and others.

Fruit Juice And Tea Filling Machine Details


About our company

Our company has years of design experience and numbers of proprietary technologies. Reliable has been always committing himself to offer varies stand-alone devices and complete solution to drinks and brewers makers since establishment.No matter whether it is water filling, hot filling,Carbonated filling and aseptic cold filling, or in recent years the development of PET bottles and glass bottles of alcoholic filling line and oil filling line.Reliable is able to provide you all kinds of consummate projects and service!

Our Service

1.We can customize the special size according to customer's demands.
2.Answer your any question on us within 24 hours.
3.Supply all information you required.
4.Machines video for reference.
5.Welcome to visit factory, and see the machine running.
6.Machines testing running over 8 hours, and sending testing videos.
7.Engineer arranged to install machines.
8.Spare Parts provided.
9.one year warranty.
