    5L Pet Factory Production Mineral Water Bottle Blowing Machine With Semi Auto

    Ask Lasest Price
    Brand Name : Reliable
    Model Number : RM-8L
    Certification : CE ISO SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month bottle blow molding machine
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    5L Pet Factory Production Mineral Water Bottle Blowing Machine With Semi Auto


    5L Pet Factory Production Plastic Bottle Blowing Machine with Semi Auto

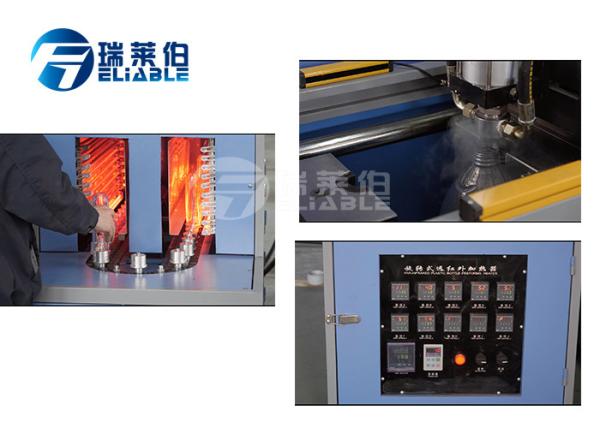

    Features of main body:

    1. Heating furnace is always under stable temperature. The embryo will be heated evenly, not be influenced by outside environment.
    2. The system is equipped with silencer, connecting rod and articulated refueling devices.
    3. Cooling system with cold air circulating ensures same heat exposure of inner and outer of the bottles.
    4. Adopting double crank to adjust mould , heavy locking mould, stable and fast ; adopt infrared oven to heat the perform ,the perform rotated and heated equally.
    5. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
    6. The Blow Moulding Machine Price is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
    7. Small shape, low inveestment, one person enough, easy to use and safe.

    Technology Parameter


    Container
    Max.Container VolumeItr6
    Max.Neck Diametermm120
    Max.Container Diametermm185
    Max.Container Heightmm380

    RM-5L
    Molding
    Clamping force
    kg
    26000
    Clamping stroke
    mm
    280
    Stretching stroke
    mm
    450
    Bottle Stroke
    mm
    /
    Cavity Spacing
    mm
    90-120
    Number of Cavity
    Cavities
    1
    Carriage Unit
    pcs
    96
    Theoretical Output
    bph
    300-500
    Electrical System
    Total Power
    kw
    42
    Heating Power
    kw
    40
    Number of Lamp Layers
    Layers
    10
    Air System
    Operating Pressure
    kg/cm²
    7-9
    Low Pressure Air Consumption
    Ltr/min
    600
    Blowing Pressure
    kg/cm²
    20-30
    High Pressure Air Consumption
    Ltr/min
    1600
    Chiller
    Operating Pressure
    kg/cm²
    2-4
    Temperature Range
    10-12
    Consumption
    kcal/hr
    2000
    Flow Rate
    Ltr/min
    200
    Main Machine
    (Blower)
    Blower Dimensions
    mm(L*W*H)
    1950*650*1750
    Blower Weight
    kg
    700
    Main Machine
    (Heater)
    Heater
    Dimensions
    mm(L*W*H)
    2170*670*1600
    Heater Weight
    kg
    400

    NoNameTypeQty
    1Blow Molding MachineRM-50001set
    2HP Air Compressor1.2m3/mim30Kg1set
    3Air dryer2.0m3/min30kg1 set
    4Air filter2.0 m3/min 30kg2sets
    5Water chiller5HP1 set
    8Mould10L1 set



    Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water, cola, milk, juice and vinegar, oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

    1. Training

    Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.


    2. Quality guarantee

    We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
