| RM-4000 |
| MOLDING | Clamping force | kg | 32000 |
| Clamping stroke | mm | 125 |
| Stretching stroke | mm | 350 |
| Bottom Stroke | mm | 30-70 |
| Cavity pitch | mm | 120 |
| Number of Cavity | Cavities | 4 |
| CONTAINER | Max.container volume | itr | 1.5 |
| Neck diameter range | mm | 18-38 |
| Max.container diameter | mm | 115 |
| Max.container height | mm | 320 |
| Carriage unit | pcs | 116 |
| THEORETICAL OUTPUT | bph | 4800 |
| ELECTRICAL SYSTEM | Total power | kw | 54 |
| Heating power | kw | 20 |
| Max.heating power | kw | 48 |
| AIRSYSTEM | Operating pressure | kg/cm2 | 7 |
| Air consuming | Itr/min | 1500 |
| Blowing pressure | kg/cm2 | 35 |
| Air consuming | Itr/min | 6000 |
| AIR DRYER | Operating pressure | kg/cm2 | 2-4 |
| Temperature | | 10-12 |
| Consuming | kcal/hr | 10000 |
| Flow rate | Itr/min | 60 |
| WATER CHILLER | Operating pressure | kg/cm2 | 2-4 |
| Temperature | | 30 |
| Consuming | kcal/hr | 45000 |
| Flow rate | Itr/min | 150 |
MACHINE | Machine size | mm | 2450-2150-2200 |
| Machine weight | kgs | 4600 |
| REMARKS | 1. All data standard infication for 500ml bottle. 2. The actual output depends on the preform quality and bottle
shape. 3. Specifications are subject to change without notice. 4. Please provide the stable ambient temperature. |
Characteristics:

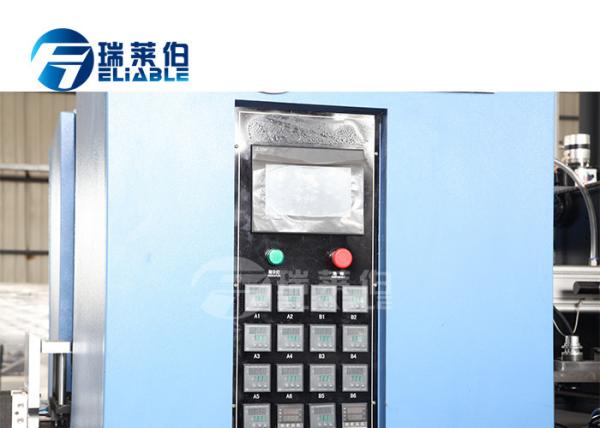

1:Multi screen for choice, dynamic picture display with
Chinese/English ,change or extend program according to client
request
2:five-step mold closing, four-step mold opening; two-step carriage
forward or retracting
3:World famous electrical components and high quality circuit
hardware with stable and reliable running
5:point twin toggle clamping system by modular optimization
software designing. Strong clamping with rapid and stable, to meet
the strict clamping condition
6:Mould height adjustment by hydraulic driven gear system with
rapid and stable
7:Transducer control clamping stroke and injection stroke to
accuracy of ±0.05mm.
Mold
1)Our mold producing center produces exact mold ,adopts the high
grade material to make.
2)The perform mold inside uses the imported steel, the surface’s
brightness is very high and the service time is very long.
3)The design of equipment is logical, easily operation.
4)High level automation , using famous imported hydraulic ,
electrical, sealing parts, the trouble will be less .
