Luxuriant In Design Pet Bottle Making Machine , Bottle Bolw Molding Automatic Machine

Ask Lasest Price
Brand Name :	Reliable
Model Number :	RM-2000
Certification :	CE ISO SGS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	15 Set/Sets per Month Automatic Used PET Bottle Stretch Blowing Molding Machine
Delivery Time :	35-45 working days

Add to Cart

Product Details
Company Profile

Luxuriant In Design Pet Bottle Making Machine , Bottle Bolw Molding Automatic Machine

Luxuriant In Design Bottle Bolw Molding Automatic Bottle Blowing Machine

Description

1. Automatic performs input and ready bottle output system.

2. The machine is equipped with specially designed PLC control system.

3. Pneumatic unit providing power for machine movement including machine driving and bottle blowing.

4. The machine has a plenty of assistant unit to increase the machine's performance such as air storage unit to keep the air pressure stable grease-lubricating unit to reduce mechanical parts' wear and tear and multi-utilization air entry unit to meet air compressed air high-pressure single entry mode and high-pressure & low-pressure double entry mode.

5. The machine preform heater adopts independent temperature control unit for each heating zone to offer ideal temperature for various preforms.

6. The machine preform heater is equipped with air-cooling and water-cooling device to remove the remained heat on preform loader and prevent preform neck from deformation. And reliable air exhaust system placed on the heater keeps heating temperature continuous and stable during preform heating process.

7..Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.

The technology data

Type	RM-2000
output	according to bottle shape	Max. 2800BPH
product specification	bottle body diameter	20mm-100mm
	bottle height	50mm-350mm
	bottle mouth diameter	15mm-38mm
mold	cavity	2 cavities
	mold thickness	200mm
	mold effective area	800X800mm
Main power	power ,voltage	380v 3Phase /220v 3Phase 50/60HZ
Main power	Install machine power/actural use power	68kw/15kw
air source	low pressure air compressor	2.0m3/min 1.0MPa
	high pressure air compressor	3.6m3/min 3.0MPa
	cold-dry machine	2.0m3/min 3.0MPa 1set
cooling water	cooling quantity	15L/min
main machine size	LWH	2808X1958X1920mm / 4600kg
feeder size	LWH	2000X950X2480mm / 250kg

The flow chart of

High Pressure Air Compressor→Air Storage Tank→Air Filter→ Air Dryer→Air Filters→ Water Chiller→Low Pressure Air Compressor→PET Preform→ heat preform→ stretch→ blowing→ bottles

The element of our machines uses the international brands and the processing is completed by professional technician
Our products have been sold to the whole world

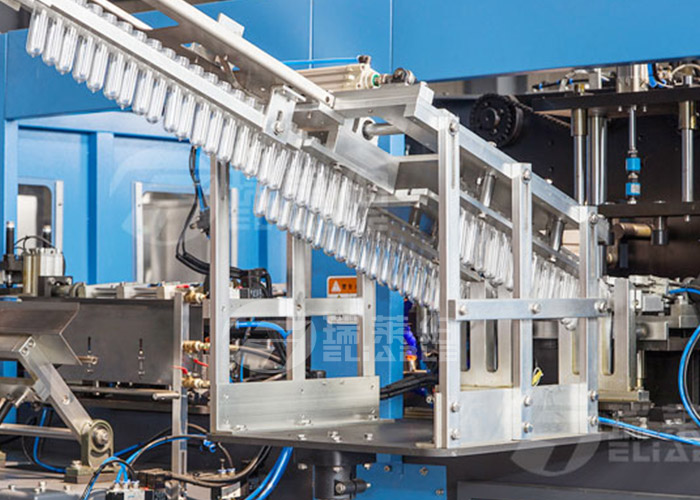

Details

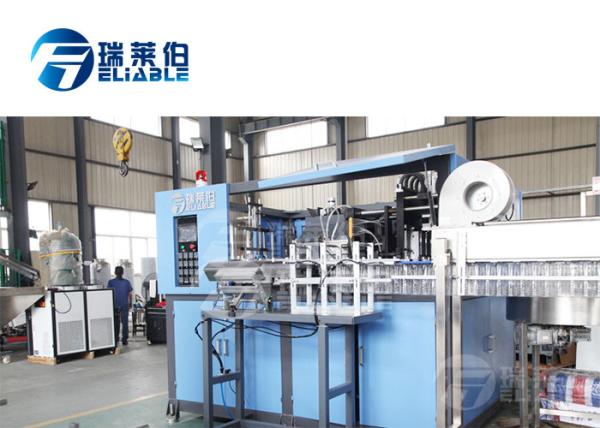

The machine whole outlooking
