Mineral Water Bottle Making Machine , Plastic Bottle Making Machine CE ISO SGS

Ask Lasest Price
Brand Name :	Reliable
Model Number :	RM-2000
Certification :	CE ISO SGS
Price :	26000-27000 USD/set
Payment Terms :	L/C, T/T
Supply Ability :	15 Set/Sets per Month Automatic Used PET Bottle Stretch Blowing Molding Machine
Delivery Time :	35-45 working days

Add to Cart

Product Details
Company Profile

Mineral Water Bottle Making Machine , Plastic Bottle Making Machine CE ISO SGS

Full Automatic Mineral Water Bottle Making PET Bottle Blowing Machine For PET Bottle

We can help you design a bottle as long as you tell us the height, diameter, and material of the bottle

Product Overview--PET Bottle Blowing Moulding Machine

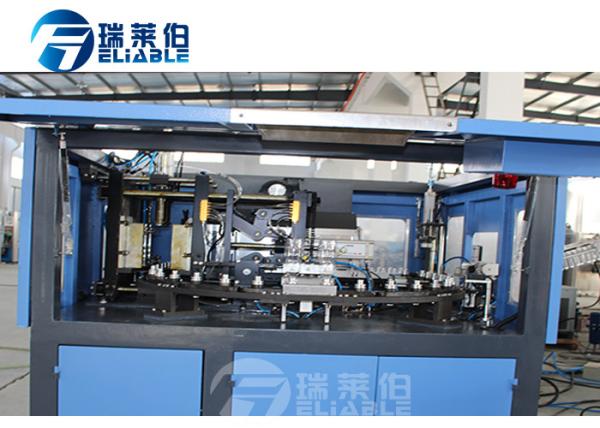

RM-4000 Plastic Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. The Plastic Bottle Making Machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle ,oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Function--PET Bottle Blowing Moulding Machine

1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers

Advantage--PET Bottle Blowing Moulding Machine

• High safety. high speed with high efficiency.
• Manual saving, one man is enough for operation the machine.
• Stable performing with easy maintaining.
• Stable performance with advanced PLC.
• Japan Omron inspection sensor
• Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
• Power saving design that can increase your profits
• Segregate type air controlling system, which is designed for avoiding waste pollution

• The preforms feeds automatically by system and conveys automatically by conveyor.Automatic preform conveyer to save human cost.

• Introduce the FESTO air cylinder to avoid contamination and noise.

Technology datas of PET Bottle Blowing Moulding Machine

Type	RM-2000 Plastic Bottle Making Machine
Output	According to bottle type	2000PCS/H
Product specification	Bottle diameter	20mm-100mm
	Bottle height	50mm-350mm
	Bottle mouth diameter	15mm-38mm
Mold	Cavities	4cavities
	Mold thickness	200mm
	Mold effective area	500*500mm
Main power	Power	380v 3Phase /220v 3Phase 50/60HZ
Main power	Install power/actual power	49kw/10kw
Air source	Low pressure air compressor	1.2m3/min 1.0MPa
	High pressure air compressor	2.0m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	230820581920mm/3600kg
Feed embryo machine size	Length width height/weight	20009502480mm/250kg

PET material because of its exceptional performance, are generally used two-step molding process, by the preform injection molding machine to produce a 24-hour After cooling, the internal molecular structure of their re-arranged in an orderly manner, and blowing for the next step to create good conditions, so that more excellent blowing performance products. Such as the famous Coca-Cola Company is currently using this technology. Its production processes are as follows:

PET materials→Dryer→Injection machine(with Chiller)→Bottle Proferms
