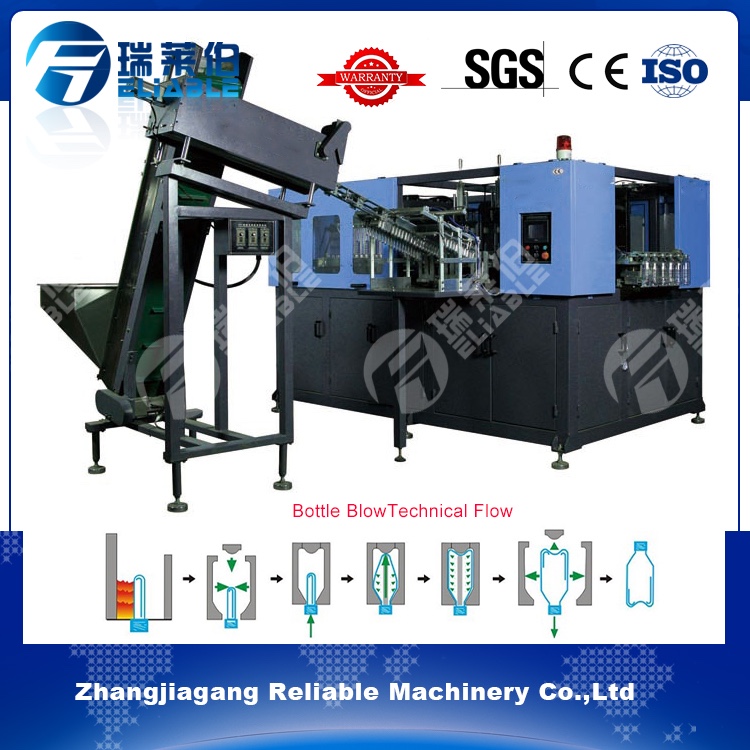

Type

RM-6000

output

according to bottle shape

Max. 6000PCS/H

product specification

bottle body diameter

20mm-100mm

bottle height

50mm-350mm

bottle mouth diameter

15mm-38mm

mold

cavity

6cavities

mold thickness

200mm

mold effective area

800*800mm

Main power

power ,voltage

380v 3Phase /220v 3Phase 50/60HZ

Install machine power/actural use power

68kw/15kw

air source

low pressure air compressor

2.0m3/min 1.0MPa

high pressure air compressor

3.6m3/min 3.0MPa

cold-dry machine

2.0m3/min 3.0MPa 1set

cooling water

cooling quantity

15L/min

main machine size

L*W*H

2808*1958*1920mm/4600kg

feeder size

L*W*H

2000*950*2480mm/250kg

1. Installation, debug

After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

2. Training

Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee

We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

4. After sales

(1)After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can’t solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

(2)After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can’t solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
