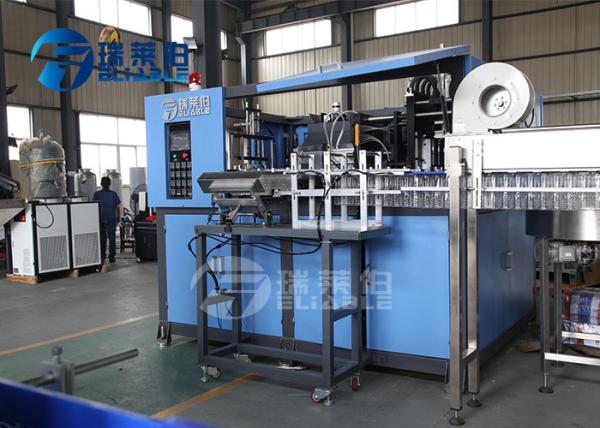

Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    Buy cheap Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle from wholesalers

    Buy cheap Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle from wholesalers
    • Buy cheap Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle from wholesalers
    • Buy cheap Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle from wholesalers

    Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    Ask Lasest Price
    Brand Name : Reliable Blow Molding Machine
    Model Number : RM-4000 Blow Molding Machine
    Certification : CE ISO9001 SGS
    Supply Ability : 30 Roll/Rolls per Month Hot Sale Full-Automatic Pet Bottle blow molding machine/ Make Pl
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 25- 35 working days
    • Product Details
    • Company Profile

    Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    Hot Sale Full-Automatic Pet Bottle Making Machine For Water , Milk , Juice , Oil Bottle


    Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    RM-4000

    MOLDING

    Clamping force

    kg

    32000

    Clamping stroke

    mm

    125

    Stretching stroke

    mm

    350

    Bottom Stroke

    mm

    30-70

    Cavity pitch

    mm

    120

    Number of Cavity

    Cavities

    4

    CONTAINER

    Max.container volume

    itr

    1.5

    Neck diameter range

    mm

    18-38

    Max.container diameter

    mm

    115

    Max.container height

    mm

    320

    Carriage unit

    pcs

    116

    THEORETICAL OUTPUT

    bph

    4800

    ELECTRICAL SYSTEM

    Total power

    kw

    54

    Heating power

    kw

    20

    Max.heating power

    kw

    48

    AIRSYSTEM

    Operating pressure

    kg/cm2

    7

    Air consuming

    Itr/min

    1500

    Blowing pressure

    kg/cm2

    35

    Air consuming

    Itr/min

    6000

    AIR DRYER

    Operating pressure

    kg/cm2

    2-4

    Temperature

    10-12

    Consuming

    kcal/hr

    10000

    Flow rate

    Itr/min

    60

    WATER CHILLER

    Operating pressure

    kg/cm2

    2-4

    Temperature

    30

    Consuming

    kcal/hr

    45000

    Flow rate

    Itr/min

    150


    MACHINE

    Machine size

    mm

    2450-2150-2200

    Machine weight

    kg

    3600

    REMARKS

    1. All data standard infication for0.6L bottle.

    2. The actual output depends on the preform quality and boltte shape.

    3. Specifications are subject to change without notice.

    4. Please provide the stable ambient temperature.


    Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    1.RM series is latest design with Pivotal Blow Structure. Compared with models with similar capacity, Pivotal Blow Structure allows simple & smaller cylinders applying, faster operation and save 50-70% energy consumption for Clamping Process.

    2.Pivotal Blow Structure & Aluminium Blow Molds makes blowing operation faster, which is 2300BPH per hour with 2 cavity molds.

    3.Special design heating element save 50% power & space.

    4.Each heating lamp is controlled by independent controller.

    5.Running energy consumption cost only 4.8KW for blowing 600ml at speed of 1800bph.

    6.20 sets of operation data could be stored in system.

    7.Product pass rate is over 99.9%.

    8.Simple structure, easy maintenance


    Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    Main electric and peneumatic components are with worldwide famous brand

    Full Automatic Plastic Pet Bottle Making Machine Fit Milk / Juice / Oil Bottle

    Mold


    No matter what the product ’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.


    How to get your suitable machine or production line ?

    Enquiry: Contact us by email, phone call, fax, Instant tools (Trade manager , MSN , Skype , Whatsapp ) and let us know your enquiry.

    Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.

    Quotation: Prices offered and accepted.

    Placing Order: Place order as per contract or discussion.

    Double confirm: Proforma invoice offered to double confirm the order for both-side records.

    Payment: Payment settled.

    Producing Machine: Produce machine as per contracted term under our arrangement.

    Shipping: Goods shipped as per contracted term.

    Arrival: Goods arrive at local port or warehouse, depending on contracted term.

    Completeness: Order completed.


    About Reliable:


    Services

    The sample service :

    1.We can send you the video of the running machine.

    2.You are welcome to come to visit our company ,and see the machine running in our factory ,we can pick you up from the station near our city.

    3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information ,you can go to visit their factory.

    The customized service :

    1.We can design the machines according your requirements(material ,power ,filling type ,the kinds of the bottles ,and so on),at the same time we will give you our professional suggestion ,as you know ,we have been in this industry for many years.

    2. We can offer some professional suggestion when you begin this project, such as draw the factory layout for you ,analyze the source water report.

    The after-sales service :

    1.We will provide the bill of load on time to make sure you can get the machine quickly.

    2.When you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.

    3.We ask feedback from our customer and offer help when the production line have been used for some time!

    4.We provide one year warranty with spare parts free.


    Why choose us :

    1. We own a factory ourselves, and we can assure the quality we manufactured.

    2. We offer you high quality machines with high quality after-service . Also we have one year warranty of the spare parts , free of charge.

    3. We will deliver the machines on time as the date we agreed both side.

    4. We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run

    the machines .

    5. After we deal down all the things , we will offer you a spare parts list for your reference

    More Datails, please contact me.
