Technology datas of PET Bottle Blowing Moulding Machine

Type	RM-4000 Plastic Bottle Making Machine
Output	According to bottle type	4000PCS/H
Product specification	Bottle diameter	20mm-100mm
	Bottle height	50mm-350mm
	Bottle mouth diameter	15mm-38mm
Mold	Cavities	4cavities
	Mold thickness	200mm
	Mold effective area	500*500mm
Main power	Power	380v 3Phase /220v 3Phase 50/60HZ
	Install power/actual power	49kw/10kw
Air source	Low pressure air compressor	1.2m3/min 1.0MPa
	High pressure air compressor	2.0m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	2308*2058*1920mm/3600kg
Feed embryo machine size	Length width height/weight	2000*950*2480mm/250kg

The whole outlooking of PET Bottle Blowing Moulding Machine

We can help you design a bottle as long as you tell us the height, diameter, and material of the bottle

Characteristics of PET Bottle Blowing Moulding Machine:

Product Overview--PET Bottle Blowing Moulding Machine

RM-4000 Plastic Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. The Plastic Bottle Making Machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle ,oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Function--PET Bottle Blowing Moulding Machine

Easily Operation PET Bottle Blowing Machine for Natural Drink Water Bottle Making Machine

PET material because of its exceptional performance, are generally used two-step molding process, by the preform injection molding machine to produce a 24-hour After cooling, the internal molecular structure of their re-arranged in an orderly manner, and blowing for the next step to create good conditions, so that more excellent blowing performance products. Such as the famous Coca-Cola Company is currently using this technology. Its production processes are as follows:

PET materials→Dryer→Injection machine(with Chiller)→Bottle Proferms

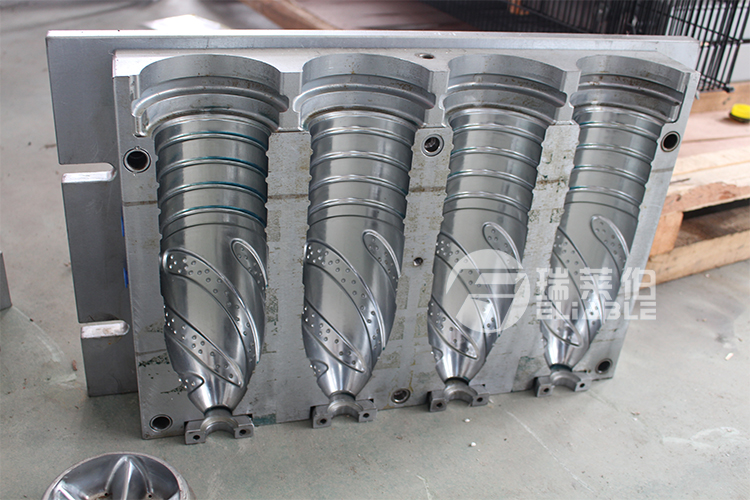

Mould-4 Cavity

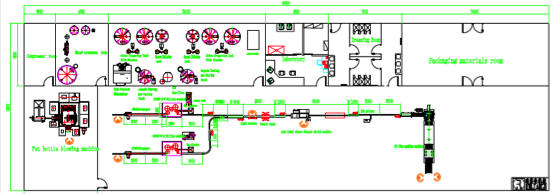

Flow Chart of bottle blowing machine

⇓

Easily Operation PET Bottle Blowing Machine for Natural Drink Water Bottle Making Machine

Delivery & Packing
Delivery Time: 30-45 days after get your deposit.
Coming Document:
1) Machine Quality Guarantee
2) Complete set install & maintain instruction Book in English language
3) Complete Document for customer to clear its custom

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Easily Operation PET Bottle Blowing Machine for Natural Drink Water Bottle Making Machine

Free 2D&3D Bottle Design Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle And three size of bottle fitting parts for free.	Free Layout Plant Design Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you.	Free Spare Parts All Reliable Machine will be supply One year Spare parts for Free . High Quality Parts ensure the stable of machine’s running.
After-sales service 1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly 2.When you finish the Preparation conditions our fast and professional aftersales service engineer team will go to your factory to install the machine →give you the operating manual→train your employee until they can operate the machine well. We provide one year warranty 3.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

Easily Operation PET Bottle Blowing Machine for Natural Drink Water Bottle Making Machine

1) Can your factory provide the whole product line from A to Z?

A: Yes, we can provide the complete product line, from bottling making system, water treatment system, filling system,labeling machine,date printer to PE packing machine.

2) Are all machinery your factory made?

A: Our factory make the water purification and filling packing machines. We also product the bottle making machinery, we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?

A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.

4)What certificates you can provide?

A: Our factory provide the CE, SGS, ISO

5)Can your factory make the bottle drawing, workshop layout, and labels for us?

A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge. (Workshop need customer to provide the size of factory)

6)Installation and Training Time

A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

7)Where is your factory?

A3: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

8)Are you manufacturer or trading company ?

We are industrial manufacturer, which locates in Zhangjiagang city over 10 years , and begin to export our machines and provides oversea installation services since 2010 .
