    Soda Water Bottle Blow Molding Machine 48000 Kg Clamping Force 2 Years Warranty

    Ask Lasest Price
    Brand Name : Reliable Blow Molding Machine
    Model Number : RM-6000 Blow Molding Machine
    Certification : CE ISO9001 SGS
    Supply Ability : 30 Set/Sets per Month Hot Sale Full Automatic Soda Water Bottle Blow Molding Machine M
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 25-35 working days
    • Product Details
    • Company Profile

    Soda Water Bottle Blow Molding Machine 48000 Kg Clamping Force 2 Years Warranty

    Best Service Full Automatic 200-2000ML Soda Water Bottle Blow Molding Machine Manufacturer


    Soda Water Bottle Blow Molding Machine 48000 Kg Clamping Force 2 Years Warranty

    RM-6000

    MOLDING

    Clamping force

    kg

    48000

    Clamping stroke

    mm

    125

    Stretching stroke

    mm

    350

    Bottom Stroke

    mm

    30-70

    Cavity pitch

    mm

    120

    Number of Cavity

    Cavities

    6

    CONTAINER

    Max.container volume

    itr

    1.5

    Neck diameter range

    mm

    18-38

    Max.container diameter

    mm

    115

    Max.container height

    mm

    320

    Carriage unit

    pcs

    166

    THEORETICAL OUTPUT

    bph

    6000

    ELECTRICAL SYSTEM

    Total power

    kw

    78

    Heating power

    kw

    40

    Max.heating power

    kw

    72

    AIRSYSTEM

    Operating pressure

    kg/cm2

    7

    Air consuming

    Itr/min

    1500

    Blowing pressure

    kg/cm2

    35

    Air consuming

    Itr/min

    7400

    AIR DRYER

    Operating pressure

    kg/cm2

    2-4

    Temperature

    10-12

    Consuming

    kcal/hr

    11400

    Flow rate

    Itr/min

    90

    WATER CHILLER

    Operating pressure

    kg/cm2

    2-4

    Temperature

    30

    Consuming

    kcal/hr

    54000

    Flow rate

    Itr/min

    180

    MACHINE

    Machine size

    mm

    3150-2150-2200

    Machine weight

    kg

    4500

    REMARKS

    1. All data standard infication for0.6L bottle.

    2. The actual output depends on the preform quality and bottle shape.

    3. Specifications are subject to change without notice.

    4. Please provide the stable ambient temperature.

    Soda Water Bottle Blow Molding Machine 48000 Kg Clamping Force 2 Years Warranty

    A.Stable performance with advanced PLC.

    B.Conveying preforms by hands.

    C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

    D.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

    E.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

    F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

    G.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

    H.Strong clamping force with high pressure and double crank links to lock the mold.

    I.Two ways of operating: automatic and manual.

    J.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

    K.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

    L.Contamination is avoided for the bottle body.

    M.Ideal effect of the chilling with the chilling system.

    N.Easy installation and starting


    O.Low rejection rate: less than 0.2 percent.

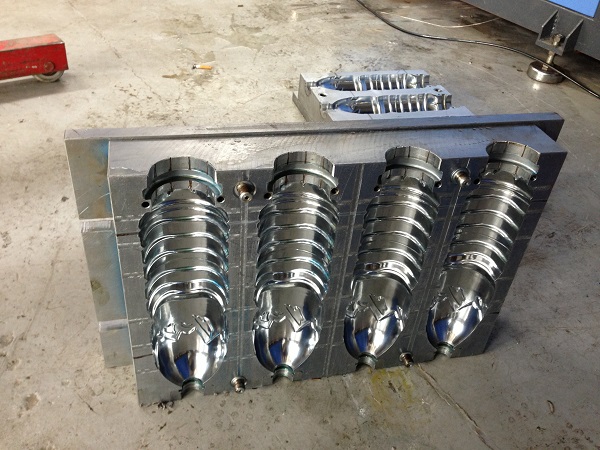

    Mold

    Our mold producing center produces exact mold ,adopts the high grade material to make.


    The perform mold inside uses the imported steel, the surface’s brightness is very high and the service time is very long.


    The design of equipment is logical, easily operation.


    High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .


    No matter what the product ’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.
