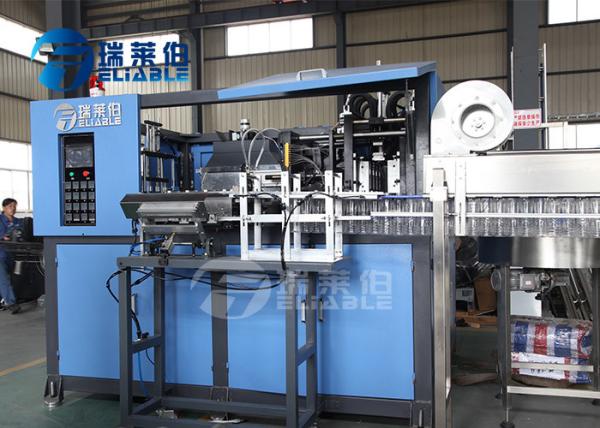

Automatic Stretch Bottle Blow Molding Machine For PET Bottle
Product Description
Features-- Blow Mouldng Machine
1) High safety, high speed with high efficiency.
2) Manual saving, one man is enough for operation the machine.
3) Stable performing with easy maintaining.
4) Imported PLC controlling and man-machine interface computer.
5) Japan Omron inspection sensor.
6) Adopt the new type double bend arm and the four rod-clamping
structure(won the patent): Cross direction; Middle mould board is
move parallel; the distance between two mold board is adjusted by
the chain wheel. Thus, the clamping force is very strong.
7) Power saving design that can increase your profits.
8) Segregate type air controlling system, which is designed for
avoiding waste pollution.
Technical Data-- Blow Mouldng Machine
ITEM | RM-A4 | RM-A6 |
Theoretical output | 4000 | 6000 |
Max. container volume | 1.25L | 0.7L |
Max .neck diameter | 38MM | 38MM |
Max. container diameter | 80MM | 60MM |
Max. container height | 320MM | 265MM |
Number of cavity | 4 | 6 |
Number of lamp | 70 | 60 |
Max .heating power | 84KW | 90KW |
Installation power | 95KW | 100KW |
Actual power consumption | 45KW | 50KW |
Operating low pressure | 0.7Mpa | 0.7Mpa |
Low pressure consuming | 2000L/min | 2000L/min |
Blowing pressure | 3.5Mpa | 3.5Mpa |
High pressure consuming | 5000L/min | 4500L/min |
Operating pressure | 0.3-0.5Mpa | 0.3-0.5Mpa |
Temperature | 10 | 10 |
Flow rater | 40 L/min | 50L/min |
Machine dimension | 4×2×2.2 | 4.9×2.15×2.2 |
Machine weight | 4800Kg | 5000Kg |
Advantages
1.Stable performance with advanced PLC.
2.Conveying preforms automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat
by letting the bottles rotate by itself and revolute in the rails
simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat preforms in
shapes by adjusting the light tube and the length of the reflecting
board in the preheating area and eternal temperature in the
preheater with an automatic thermostatic apparatus.
5.High safeties with security automatic-locking apparatus in each
mechanical action,which will make the procedures turn into a state
of safety in case of a breakdown in certain procedure.
6.No contamination and low noise with the air cylinder to drive the
action instead of the oil pump.
7.Satisfaction with different atmospheric pressure for blowing and
mechanical action by dividing the blowing and action into three
parts in the air pressure diagram of the machine.
8.Strong clamping force with high pressure and double crank links
to lock the mold.
9.Two ways of operating: automatic and manual.
10.Safe,reliable and unique design of the position of valve to make
the air pressure diagram of the machine easier to understand.
11.Low cost,high efficiency,easy operation,easy
maintenance,etc,with automatic technological process.
12.Contamination is avoided for the bottle body.
13.Ideal effect of the chilling with the chilling system.
14.Easy installation and starting.
