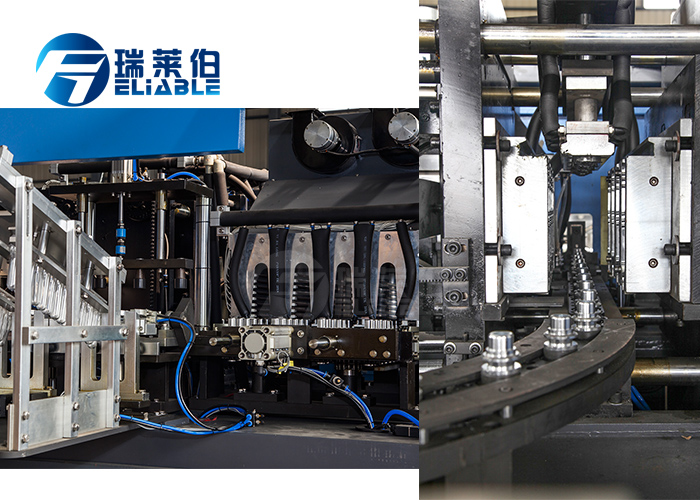

Fully Automatic Drinking Water PET Bottle Blow Molding Machine With
4 Cavity Mould
PET Bottle Blowing Machine ---Description
Blow Moulding Machines can blow the maximum capacity of the
products is 2L. It can blow bottles in shapes: carbonated, mineral,
pesticide, cosmetics, wide-mouth, hot filling, and other packing
containers, which is made of plastic of crystalline type, such as
PET and PP etc.
1).High Automatization
2).High Intelligence:The machine can be controlled through touch
screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly
precise blow-mould closing system ensure quality.
4).High Speed:2000BPH(2-cavity),, 4000BPH(4-cavity),
6000BPH(6-cavity).
5).No Contamination:Closed production zone, good self-lubrication
system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual
inspection, low noise.
Fully Automatic Drinking Water PET Bottle Blow Molding Machine With
4 Cavity Mould
PET Bottle Blowing Machine ---Technical Parameters
Model | RM-4000D PET Bottle Blowing Machine |
Productivity | Depend on bottle design | 3200-4000PCS/H |
Product type | Body diameter | 20mm-100mm |
Height | 50mm-350mm |
Neck diameter | 15mm-38mm |
Mold | Cavity | 4cavities |
Mold thick | 240mm |
Mold | 500*500mm |
Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
Rated Power | 49kw |
Really use power | 14kw |
Air source | LP air compressor | 1.6m3/min 1.0MPa 1set (15KW) |
HP air compressor | 1.0m3/min 3.0MPa 2sets (each set 11KW) |
Air dryer | 2.0m3/min 3.0MPa 1set |
Cooling water | Cooling water | 15L/min |
Size | L*W*H | 1908*1858*1920mm |
Weight | 3600kg |
preform unscrambler | L*W*H | 2000*950*2480mm |
Weight | 250kg |
Resin available | | PET |
Fully Automatic Drinking Water PET Bottle Blow Molding Machine With
4 Cavity Mould
PET Bottle Blowing Machine ---Brand
NO. | Parts name | Brand | The place of origin |
1 | Pneumatic components | AIRTAC | Taiwan |
2 | Turning cylinder | FESTO | German |
3 | High pressure air blowing valve | PARK | USA |
4 | Low pressure work valve | PMC | Korea |
5 | PLC controller | AELTA | Taiwan |
6 | Full computer screen | AELTA | Taiwan |
7 | High pressure muffler | ATOMUFFLER | USA |
8 | Oily water separator | AIRTAC | Taiwan |
9 | Photoelectric switch | AUTONICS | Korea |
10 | Switching power | AELTA | Taiwan |
11 | Circuit breaker | DELIXI | Wenzhou |
12 | Air switch | TAIAN | Taiwan |
13 | Relay | IDEC | Japan |
14 | Finger cylinder | AIRTAC | Taiwan |
PET Bottle Blowing Machine ---Brief Introduction
Brief Introduction | Zhangjiagang Reliable Machinery Co., Ltd.Is a hi-tech designing and
manufacturing enterprise, which is specialized in beverage
production and packing complete lines as well as various water
treatment machines.We are one of the earliest companies engaged in
manufacturing liquid filling and packing equipment in China |
Main Products | Liquid filling machines (water, fruit juice/tea, carbonated drink,
oil, alcohol, plant protein drink, etc.), Barreled filling line(3-5
gallon) Water treatment machines, Labeling & packing machines,
semi-automatic /full automatic bottle blowing machines, and
injection molding machines. |
Good Service | we also supply technique consultation, factory construction design
plan, equipment installation and adjustment, technology training
and other after-sales services.Now our products are exported to
over ten countries and regions, including Southeast Asia, Russia,
the Commonwealth of the Independent States, Western Asia and South
Africa. |
Payment | 100%L/C at sight or T/T are both acceptable |
Delivery Time | It is based on what kind of products you ordered, but usually it
will take about 30 days after receiving your down payment and
smaple bottles with caps. |
