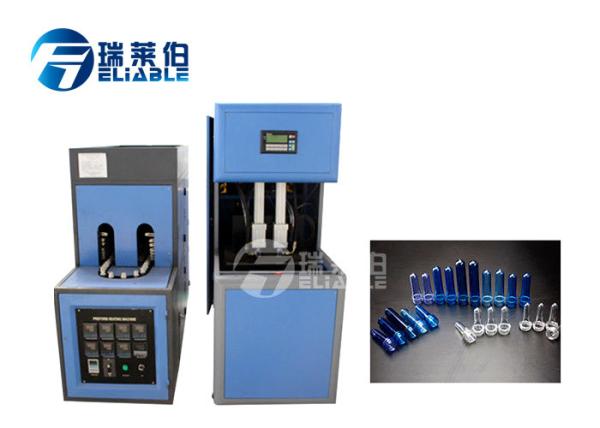

RM Series Small Plastic Blow Molding Machine In Semi-automatic
Small Plastic Blow Molding Machine---Specifications
1. RM-9A plastic bottle blowing moulding machine can produce PET
containers including the bottles for kinds of wine, drink ,soybean,
vinegar, and pesticide (less than 5liters) according to the
different bottle shape and diameter.
2. Adopting double crank to adjust mould ,heavy locking mould,
stable and fast ,Adopt infrared oven to heat the perform ,the
perform rotated and heated equally.
3. The air system has been divided into two parts: pneumatic action
part and bottle blow part to meet the different requirements for
the action and blow .It can provide sufficient and steady high
pressure for blowing large irregular shaped bottles.
4. The blow moulding machine is also equipped with muffler and
oiling system to lubricate the mechanical part of the machine.
5. The semi-automatic bottle blowing machine can be operated in the
step-by-step mode and the semi-auto mode.
6. The small plastic bottle blowing machine is small with low
investment, easy and safe to operate.
RM Series Small Plastic Blow Molding Machine In Semi-automatic
Technical Parameters
Main parameter: |
Model | RM-9A |
Container | Product material | PET |
Volume | 0.1L-2L |
Theoretical output | 800-1600PCS/H |
Preform length | 15mm-400mm |
Preform inner diameter | Φ10mm-160mm |
Moulding | Max.mould Plate Dimenstion(L x W) | 400x460mm |
Max.mould thickness | 300mm |
Clamping force | 65KN |
Mould opening stroke | 28mm |
Machine size and weight | Main machine (L x W x H) | 175*67*186cm |
Main machine weight | 600Kg |
Heater (L x W x H) | 187*63*145cm |
Heater weight | 250Kg |
Power | 17.5kw |
What service Reliable Machinery Co.,Ltd can offer you ?
- Your inquiry related to our product & price will be replied within
24hours
- Well-trained & experienced staff are to answer all your inquiries
in English and Chinese
- Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
- OEM & ODM projects are both available
- Your business relationship with us will be confidential to any
third party.
- Good after-sale service offered, please get back to us if you got
any questions.
