    4600 KG Bottle Blow Molding Machine 50 HZ For Water / Juice / Soft Drink

    Ask Lasest Price
    Brand Name : Reliable Bottle Moulding Machine
    Model Number : RM-6000 Bottle Moulding Machine
    Certification : CE ISO SGS
    Supply Ability : 10 Set/Sets per Month Bottle Moulding Machine
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 25-35 working days
    • Product Details
    • Company Profile

    4600 KG Bottle Blow Molding Machine 50 HZ For Water / Juice / Soft Drink

    Full Automatic Bottle Blow Molding Machine For Water / Juice / Soft Drink


    Great Overall performanceSmart Start SystemEasy to Maintain
    Designed by our senior engineers who has rich experience in bottle oil areas, this machine has many newest technologies based on our advanced control system.With the efforts of our engineers, now we can start our machine easily Which means you will have no trouble to use when you get it.Don’t worry about machine maintain, we have optimize its structure, so now it is easy to maintain! Professional after sales service will be offered in its lifelong years!

    Full Automatic Bottle Blow Molding Machine For Water / Juice / Soft Drink

    Product Description
    Production Overview

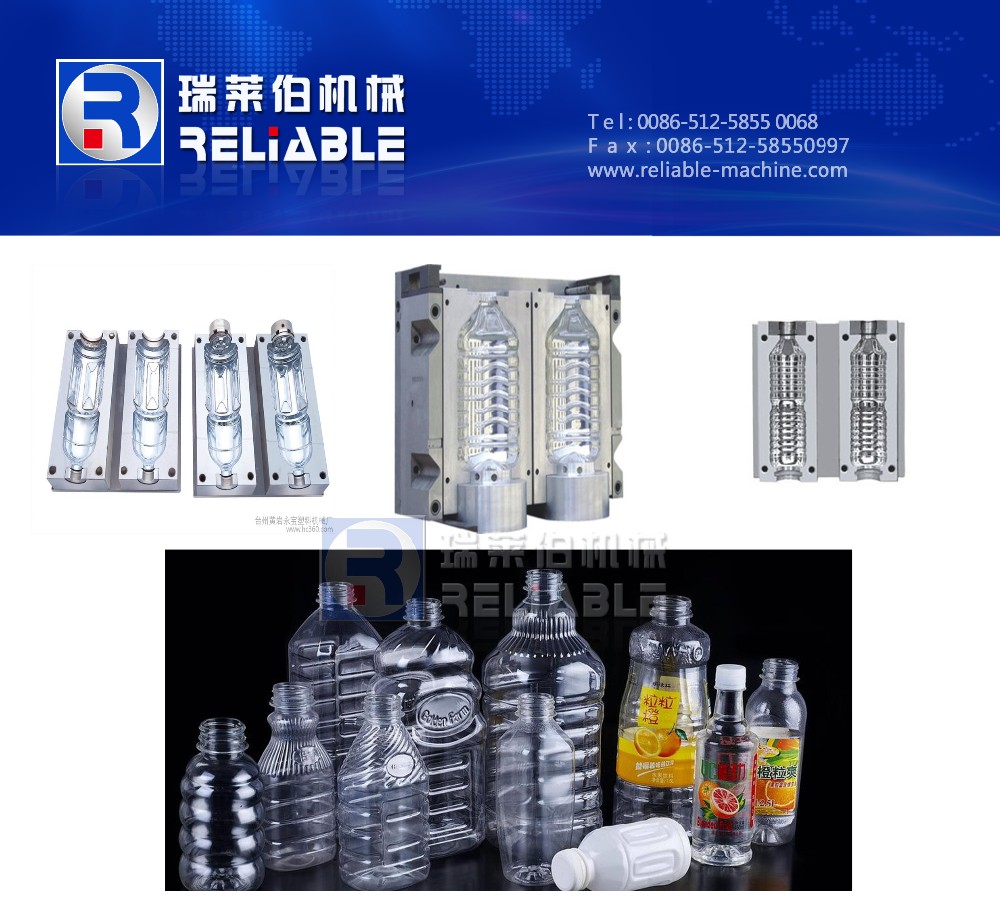

    RM-6000 blow moulding machine is suitable for producing PET plastic containers and bottles in all shapes. The blow moulding machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

    Advantages
    • High safety. high speed with high efficiency.
    • Manual saving, one man is enough for operation the machine.
    • Stable performing with easy maintaining.
    • Imported PLC controlling and man-machine interface computer
    • Japan Omron inspection sensor
    • Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
    • Power saving design that can increase your profits
    • Segregate type air controlling system, which is designed for avoiding waste pollution
    Specifications

    Type

    RM-6000

    output

    according to bottle shape

    Max. 6000PCS/H

    product specification

    bottle body diameter

    20mm-100mm

    bottle height

    50mm-350mm

    bottle mouth diameter

    15mm-38mm

    mold

    cavity

    6cavities

    mold thickness

    200mm

    mold effective area

    800*800mm

    Main power

    power ,voltage

    380v 3Phase /220v 3Phase 50/60HZ

    Install machine power/actural use power

    68kw/15kw

    air source

    low pressure air compressor

    2.0m3/min 1.0MPa

    high pressure air compressor

    3.6m3/min 3.0MPa

    cold-dry machine

    2.0m3/min 3.0MPa 1set

    cooling water

    cooling quantity

    15L/min

    main machine size

    L*W*H

    2808*1958*1920mm/4600kg

    feeder size

    L*W*H

    2000*950*2480mm/250kg
