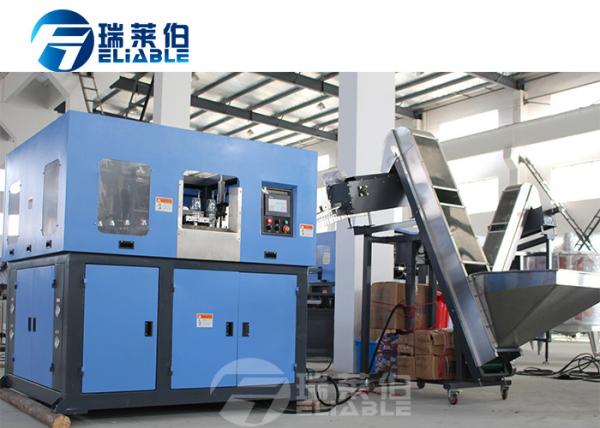

Automatic PET 500ML Round Bottle Blow Molding Machine With Two
Cavities
Main Features:
1 Adopt automatic transmission control method to reduce staff,
reduce costs, improve quality and profit.and increase profits
provide a guarantee.
2, The unique clamping structure has strong clamping power. It is
smooth, fast opening and closing mold, easier installation and
replacement for mould than semi-automatic one.
3, We used imported man-machine interface control to make sure it
has performance accuracy, strong stability, easy operation.
4, Detection devices made of imported components, high control
precision, fast response.
5, We adopted infrared lamp heat, so the penetration, uniform
heating, 40% electricity savings. The reflector width and height
can be adjusted for different structures of the performs can be
heated.
6, With automatic alarm and automatic fault detection to determine
function.
7, We chose and used Germany, Japan, Taiwan, Korea, pneumatic
components to make sure our product with high sensitivity and
switching speed, low failure rate, safe and reliable operation.
8, The air route design: Action and blowing into two parts, to
meet the blow, the action of different air pressure requirements
for high pressure
Technical Parameters:
ITEM | RM-2000HF | RM-4000D | RM-6000D |
Theoretical output | 2000 | 4000 | 6000 |
Max. container volume | 2 L | 2 L | 2 L |
Max .neck diameter | 38MM | 38MM | 38MM |
Max. container diameter | 80MM | 80MM | 60MM |
Max. container height | 320MM | 320MM | 265MM |
Number of cavity | 2 | 4 | 6 |
Number of lamp | 28 | 70 | 60 |
Max .heating power | 42KW | 84KW | 90KW |
Installation power | 50KW | 95KW | 100KW |
Actual power consumption | 35KW | 45KW | 50KW |
Operating low pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa |
Low pressure consuming | 1400L/min | 2000L/min | 2000L/min |
Blowing pressure | 3.5Mpa | 3.5Mpa | 3.5Mpa |
High pressure consuming | 3500L/min | 5000L/min | 4500L/min |
Operating pressure | 0.3-0.5Mpa | 0.3-0.5Mpa | 0.3-0.5Mpa |
Temperature | 10 | 10 | 10 |
Flow rater | 30 L/min | 40 L/min | 50L/min |
Machine dimension | 2.7×1.8×2.2 | 4×2×2.2 | 4.9×2.15×2.2 |
Machine weight | 3500Kg | 4800Kg | 5000Kg |
Preform→Preform storing parts→Preform heating(temperature
adjustment) →(Pull stretch→Blow air→ Release Air→ Blow pin and
mouth at same time→Close the blow mouth→Forming)→Finished
RELIABLE Service
The sample service
1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make
the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the
machines from us ,we can tell you their contact information, you
can go to visit their factory.
Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds
of the bottles, and so on).
2.at the same time we will give you our professional suggestion .
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go
to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.
