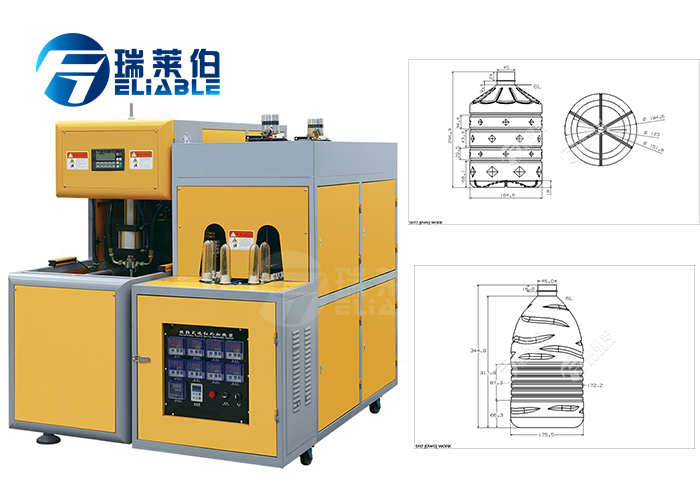

5L 6L Pure Clean Water PET Bottle Blowing Machine For 500BPH
--- Specifications ---
1. CE Certificate
2. Different Shape Bottle
3. Double/Single Statio
--- Introduction ---
1 - Adopting double crank to adjust mould ,heavy locking mould,
stable and fast ,Adopt infrared oven to heat the perform ,the
perform rotated and heated equally.
2 - The air system has been divided into two parts: pneumatic
action part and bottle blow part to meet the different requirements
for the action and blow .It can provide sufficient and steady high
pressure for blowing large irregular shaped bottles.
3 - The machine is also equipped with muffler and oiling system to
lubricate the mechanical part of the machine.
--- Characteristics ---
1.Satisfaction with different atmospheric pressure for blowing and
mechanical action by dividing the blowing and action into three
parts in the air pressure diagram of the machine.
2.Strong clamping force with high pressure and double crank links
to lock the mold.
3.Two ways of operating: automatic and manual.
4.Safe,reliable and unique design of the position of valve to make
the air pressure diagram of the machine easier to understand.
5.Low cost,high efficiency,easy operation,easy maintenance,etc,with
automatic technological process.
6.Contamination is avoided for the bottle body.
7.Ideal effect of the chilling with the chilling system.
8.Easy installation and starting.
--- Flow chart ---
High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer
-- Low Pressure Air Compressor -- Air Fiter -- Full Automatic Blow
Moulding Machine -- Mould -- Water Chiller
Main Technical parameters |
TYPE | ITEM | UNIT | RM-6L |
MOULDING | Clamping Force | kg | 25000 |
Clamping Stroke | mm | 215 |
Cavity Spacing | mm | 25000 |
Mould opening stroke | mm | 300 |
Number of Cavity | cavities | 1-2 |
Theoretical Output | bph | 400-800 |
AIR COMPRESSOR | High pressure compressor | Itr/ min | 1200 |
Low pressure compressor | Itr/ min | 600 |
MAIN MACHINE ELECTRICITY | power | KW | 18 |
Voltage/Frequency | V/Hz | 380-240-110/50-60(3-phase) |
MACHINE SIZE AND WEIGHT | Main machine(L×W×H) | mm | 1900*650*1800 |
Main machine weight | kg | 750 |
Heater(L×W×H) | mm | 1700*670*1600 |
Heater weight | kg | 350 |
--- Brand List ---
| Electrical components | Cylinders |
| PLC | Taiwan Delta | clamping cylinder | Japan SMC |
| touch screen | Taiwan Delta | stretching cylinder | Japan SMC |
| relay | France Schneider | preform-feeding flipping cylinder | Germany FESTO |
| circuit breaker | France Schneider | bottle-takeout flipping cylinder | Germany FESTO |
| air switch | France Schneider | first-stage, second-stage slide cylinder | Japan SMC |
| power supply | France Schneider | heating cylinder | Japan SMC |
| proximity switch | France Schneider | Preform-separating cylinder | Japan SMC |
| photoelectric switch | France Schneider | Manipulator cylinder | Japan SMC |
| Air Filtration | valves |
| low pressure oil-water separator | Germany FESTO | high pressure exhaust valve | USA PARKER |
| low pressure press-regulating valve | Germany FESTO | high pressure one-way valve | Germany FESTO |
| low pressure lubricator | Germany FESTO | low pressure operating valve | Japan SMC |
| | high pressure blowing valve | USA PARKER |
Other volume of bottle making we can supply.
-- Suitable Bottle Volume –
1 - Plastic Bottle 0.1 - 3L
2 - Hot Filling Bottle 0.3 - 2.5L
3 - Gallon 2.5 - 5 Gallon
4 - Oil Bottle 0.1 - 6L
5 - PP Bottle 0.3 - 2.5L
Reliable sample service
1. Send you video of the running machine.
2. Welcome to come to visit our factory, see the detail of
machines.
3. Well-trained & experienced staff are to answer all your
inquiries in English and Chinese
Reliable Customized service
1.Design the machines according your requirements(material, voltage ,
filling type, various bottles, specially designed device and so on)
.
2.Reliable Professional suggestion, as you know, our company is among
the best in the beverage machinery industry and our engineer has
experience for many years.
3.Design layout for you and offer you advice about machine
orientation or based on the factory area you have.
Reliable After-sales service
1. Deliver the machine and provide the B/L on time to make sure you can get
the machine quickly. Also send operating manual and instruction.
2. If you need, our professional engineer team will go to your factory to install
the machine and train your employee until they can operate the
machine well.
3. Regular after-sales calling to remind customers to add the
lubricating oil and maintain machine.
4. Service office in Dubai and other countries and will also visit customers’ factories to check the machines.
5. The machines from Reliable Machinery has one year warranty for free and totally five years life-long technical support.
6. 24 hours for engineer response
