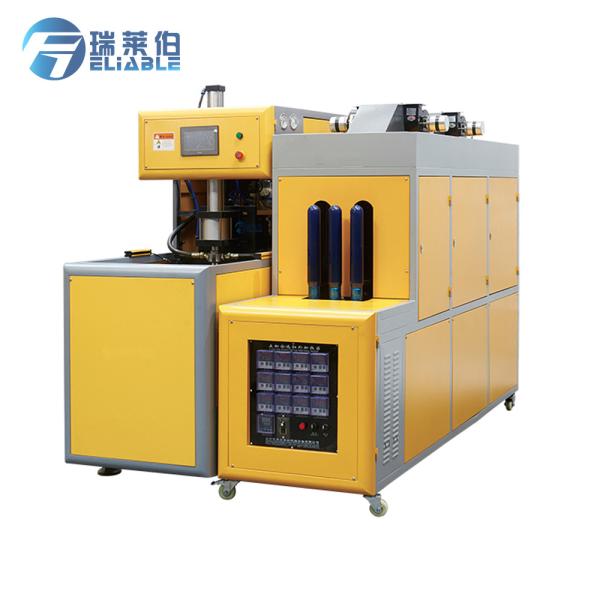

    Blue / Yellow Pet Stretch Blow Forming Machine 2350 * 750 * 1900 Mm

    Ask Lasest Price
    Brand Name : Reliable Blow Molding Machine
    Model Number : RM-5gallon Blow Molding Machine
    Certification : CE ISO9001 SGS
    Supply Ability : 30 Set/Sets per Month Newest Stretch 5 Gallon Injection Blow Molding Machine Price
    Price : Negotiable
    • Product Details
    • Company Profile

    Blue / Yellow Pet Stretch Blow Forming Machine 2350 * 750 * 1900 Mm

    Newest Design Stretch 5 Gallon Jar PET Preform Blowing Molding Machine

    Product Description
    Feature:
    (1) Energy Saving——low investment——easy to opreate and safety.
    (2)With silencer——connecting rod ——articulated refueling devices.
    (3)Cooling system with cold air cycle ——ensures same heat exposure of internal and external surface of the bottles.

    Machine Specifications:

    1.Semi-automatic, new condition

    2. Cavity:1

    3. Max.Container volume: 25 Liter

    4. Mold customizing is available.

    5. Theoretical capacity: 150 BPH

    1.Our mold producing center produces exact mold ,adopts the high grade material to make.

    2.The perform mold inside uses the imported steel, the surface’s brightness is very high and the service time is very long.

    3.The design of equipment is logical, easily operation.

    4.High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .

    5.No matter what the product ’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.


    Auxiliary machines and Introduction
    NameTypeQty

    Semi-auto blow molding machine

    (one Blower Unit one infrared oven)

    RM-100B

    100BPH

    1set
    Air compressor1.2m3/min 30kg1set
    Air filter2.0m3/min 30kg2sets
    Air cold dryer2.0m3/min 30kg1set
    5 gallon bottle mould1 cavity1 set

    Air compressorUnit1.2M3/30KG
    VolumeM31.6
    PressureKg30
    Speedr/min800
    PowerKW18.5
    Overall Dimensionmm2000*1100*1600
    Weightkg620

    Refrigeration Air DryerUnit2.0M3/3.0Mpa
    Flow capacityNm3/min2.0
    W.PMpa3.0
    Inlet Temp.≤80
    Dew point23
    Ambient Temp.≤38
    Power supplyV/HZ220/50
    Compressor powerKw0.75
    Cold MediumR22
    Overall Dimensionmm1050×650×1100
    WeightKg120

    Refining-FilterUnit2.0M3/30Kg
    Flow CapacityM3/Min2
    Max. work pressureMpa3.0
    Inlet Temp.≤50
    Overall Dimensionmm750*350*350
    Weightkg20

    Parameter

    RM-5 gallon

    Molding

    Clamping force

    kg

    6000

    Clamping stroke

    mm

    360

    Stretching stroke

    mm

    450

    Number of Cavity

    Cavities

    1

    Container

    Max.container volume

    itr

    20

    Neck diameter range

    mm

    30-120

    Max.container diameter

    mm

    300

    Max.container height

    mm

    430

    Carriage unit

    pcs

    19

    THEORETICAL OUTPUT

    bph

    150

    Electrical system

    Total power

    kw

    39

    Heating power

    kw

    38

    Max.heating power

    kw

    20

    Air system

    Operating pressure

    kg/cm2

    7

    Air consuming

    Itr/min

    1000

    Blowing pressure

    kg/cm2

    25

    Air consuming

    Itr/min

    1800

    Air dryer

    Operating pressure

    kg/cm2

    2-4

    Temperature

    10-12

    Consuming

    kcal/hr

    2000

    Flow rate

    Itr/min

    30

    Water chiller

    Operating pressure

    kg/cm2

    2-4

    Temperature

    30

    Consuming

    kcal/hr

    10000

    Flow rate

    Itr/min

    130

    Machine

    Machine size

    mm

    2350-750-1700

    Machine weight

    kg

    600

    Remarks

    1. The actual output depends on the preform quality and bottle shape.

    2. Specifications are subject to change without notice.

    3. Please provide the stable ambient temperature.


    Our Service

    Customized service

    Bottle service

    We can design the bottle according your requirement ,especially the kinds of bottles, you can give us bottle type with picture or you can design it by yourself.

    Machine service

    1.Take running machine video

    We can send you the video of the running machine , you can see more details in it.

    2.Visit factory

    You are always welcome to come to visit our factory.

    We will make the arrangement to pick you up when you come .

    3.Plan A-Z line

    If you have a plan to take a factory , we can provide A-Z service by your equinment.

    4. Quality Control

    Every machine quality checked before packing.

    We will try our best to help clients when problem occurred.

    5.Spare parts
    We provide two year warranty with spare parts free.

    Packing & Shipping

    Packing Method

    3) By express: TNT, EMS, DHL, Fedex, UPS etc

    The normal packages is wooden box. If enter container the packages is too tighter, we may use PE film to wrapping the machine. or according customer special request.It suits for long-distance transport, damp proof, rust proof, land way and seaway.

    Coming Document:

    1) Machine Quality Guarantee.

    2) Complete set install & maintain instruction Book in English language.


    Our Reliable

    Reliable keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Reliable owns a professional aftersale customer service team.Welcome to Reliable Machinery Co., Ltd!


    WELCOME!
    If you are interested, For more details, Clicking "send"now!
