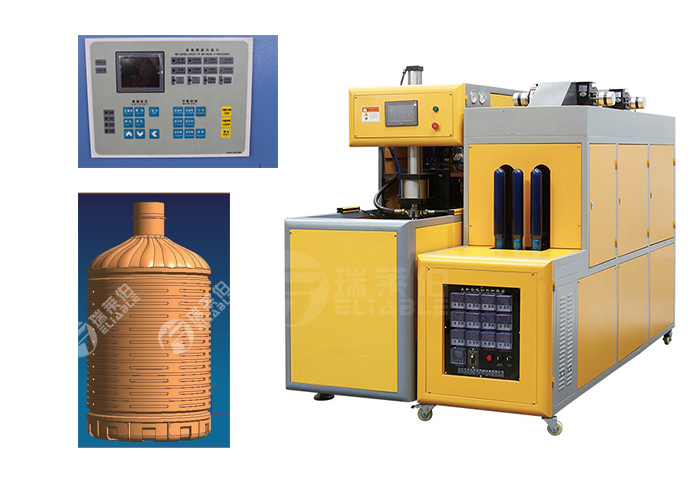

Well Designed One Step 20 Liter Jar Bottle Blowing Molding Machine
Feature
1. Linear construction transports perform for heating and bottle
forming
2. Upgrade production capacity
3. Upgrade power efficiency
4. Simplified operation by MMI control panel
5. Modular design facilitates maintenance
6. Save investment and enhance capacity
7. Minimum space
Parameter
RM-9B |
MOLDING | Clamping force | kg | 13000 |
Clamping stroke | mm | 155 |
Stretching stroke | mm | 370 |
Bottom Stroke | mm | / |
Cavity pitch | mm | 130 |
Number of Cavity | Cavities | 2 |
CONTAINER | Max.container volume | itr | 3 |
Neck diameter range | mm | 10-120 |
Max.container diameter | mm | 130 |
Max.container height | mm | 350 |
Carriage unit | pcs | 96 |
THEORETICAL OUTPUT | bph | 2400 |
ELECTRICAL SYSTEM | Total power | kw | 17 |
Heating power | kw | 16 |
Max.heating power | kw | 8 |
AIRSYSTEM | Operating pressure | kg/cm2 | 7 |
Air consuming | Itr/min | 1200 |
Blowing pressure | kg/cm2 | 25 |
Air consuming | Itr/min | 1200 |
AIR DRYER | Operating pressure | kg/cm2 | 2-4 |
Temperature |
| 10-12 |
Consuming | kcal/hr | 2000 |
Flow rate | Itr/min | 30 |
WATER CHILLER | Operating pressure | kg/cm2 | 2-4 |
Temperature |
| 30 |
Consuming | kcal/hr | 10000 |
Flow rate | Itr/min | 130 |
MACHINE | Machine size | mm | 1650-650-1700 |
Machine weight | kg | 600 |
REMARKS | 1. All data standard infication for0.6L bottle.
2. The actual output depends on the preform quality and bottle
shape.
3. Specifications are subject to change without notice.
4. Please provide the stable ambient temperature. |
Mold
Our mold producing center produces exact mold ,adopts the high
grade material to make.
The perform mold inside uses the imported steel, the surface’s
brightness is very high and the service time is very long.
The design of equipment is logical, easily operation.
High level automation , using famous imported hydraulic ,
electrical, sealing parts, the trouble will be less .
No matter what the product ’s outside or inside, they can get the
best guarantee, the good products rate can be above 99%.
Optional items of PET bottle blowing machine :
1. Exploded bottles ejection unit
During the blowing process, if the bottle burst, it can be
automatically removed. This prevents the bad bottles into the
filling machine.
2. HP air recovery system
After the bottle blowing accomplished, high-pressure air can be
recycled can be used again for the pre-blowing and operational
movement.
3. Oven and preform temperature detection system
Real-time detect the temperature of the oven and the temperature of
the preform after
heating before blowing. When the preform heating temperature does
not reach the set blowing temperature blowing workstation will
alarm, not blown.
Brand List
| Electrical components | Cylinders |
| PLC | Taiwan Delta | clamping cylinder | Japan SMC |
| touch screen | Taiwan Delta | stretching cylinder | Japan SMC |
| relay | France Schneider | preform-feeding flipping cylinder | Germany FESTO |
| circuit breaker | France Schneider | bottle-takeout flipping cylinder | Germany FESTO |
| air switch | France Schneider | first-stage, second-stage slide cylinder | Japan SMC |
| power supply | France Schneider | heating cylinder | Japan SMC |
| proximity switch | France Schneider | Preform-separating cylinder | Japan SMC |
| photoelectric switch | France Schneider | Manipulator cylinder | Japan SMC |
| Air Filtration | valves |
| low pressure oil-water separator | Germany FESTO | high pressure exhaust valve | USA PARKER |
| low pressure press-regulating valve | Germany FESTO | high pressure one-way valve | Germany FESTO |
| low pressure lubricator | Germany FESTO | low pressure operating valve | Japan SMC |
| | high pressure blowing valve | USA PARKER |
