50 Hz Semi Automatic PET Bottle Blowing Machine SUS 304 / 316 Material

    Buy cheap 50 Hz Semi Automatic PET Bottle Blowing Machine SUS 304 / 316 Material from wholesalers

    Buy cheap 50 Hz Semi Automatic PET Bottle Blowing Machine SUS 304 / 316 Material from wholesalers
    • Buy cheap 50 Hz Semi Automatic PET Bottle Blowing Machine SUS 304 / 316 Material from wholesalers

    50 Hz Semi Automatic PET Bottle Blowing Machine SUS 304 / 316 Material

    Ask Lasest Price
    Brand Name : Reliable
    Certification : CE ISO SGS
    Supply Ability : 30 Set/Sets per Month bottle making machine
    Price : Negotiable
    Model Number : RM100
    • Product Details
    • Company Profile

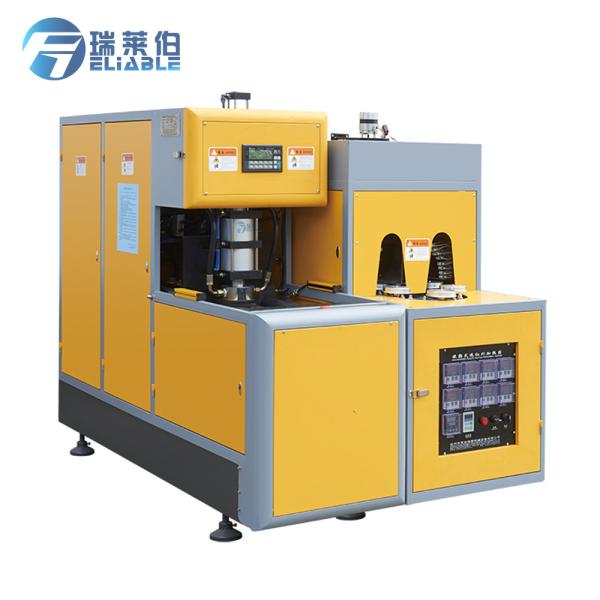

    50 Hz Semi Automatic PET Bottle Blowing Machine SUS 304 / 316 Material

    Semi Automatic 5 Gallon Jar Plastic Bottle Water Making Blowing Machine

    ---- Product Description

    (1)Energy Saving--low investment--easy to opreate and safety.

    (2)With silencer--connecting rod --articulated refueling devices.

    (3)Cooling system with cold air cycle --ensures same heat exposure of internal and external surface of the bottles.

    ---- Machine Specifications:

    1.Semi-automatic, new condition
    2. Cavity:1
    3. Max.Container volume: 25 Liter
    4. Mold customizing is available.
    5. Theoretical capacity: 100-150BPH


    ---- Introduction


    1.Our mold producing center produces exact mold ,adopts the high grade material to make.
    2.The perform mold inside uses the imported steel, the surface's brightness is very high and the service time is very long.
    3.The design of equipment is logical, easily operation.
    4.High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .
    5.No matter what the product 's outside or inside, they can get the best guarantee, the good products rate can be above 99%.

    Auxiliary machines pictures show and Introduction

    Air compressorUnit1.2M3/30KG
    VolumeM31.6
    PressureKg30
    Speedr/min800
    PowerKW18.5
    Overall Dimensionmm2000*1100*1600
    Weightkg620

    Refrigeration Air Dryer

    Unit

    2.0M3/3.0Mpa

    Flow capacity

    Nm3/min

    2.0

    W.P

    Mpa

    3.0

    Inlet Temp.

    ≤80

    Dew point

    23

    Ambient Temp.

    ≤38

    Power supply

    V/HZ

    220/50

    Compressor power

    Kw

    0.75

    Cold Medium


    R22

    Overall Dimension

    mm

    1050×650×1100

    Weight

    Kg

    120


    Refining-Filter

    Unit

    2.0M3/30Kg

    Flow Capacity

    M3/Min

    2

    Max. work pressure

    Mpa

    3.0

    Inlet Temp.

    ≤50

    Overall Dimension

    mm

    750*350*350

    Weight

    kg

    20

    Paramater

    TYPE

    ITEM

    UNIT

    PARAMETER

    Container

    Product material

    /

    PET

    Max.Container volume

    L

    25 Liter (1cavity)

    Theoretical output

    PCS/H

    20L:100

    Prefom length

    mm

    15-460

    Preform inner diametrt

    mm

    ¢15-200

    Mouding

    Max.mould plate Dimenstion(L*W)

    mm

    420*500

    Max.mould thickness

    mm

    400

    Clamping force

    KN

    330

    Mould opening stroke

    mm

    330

    Machin size and
    weight

    Main machine(L*W*H)

    cm

    155*82*200

    Main machine weight

    T

    1

    Heater (L*W*H)

    cm

    242*65*160

    Heater weight

    T

    0.38
