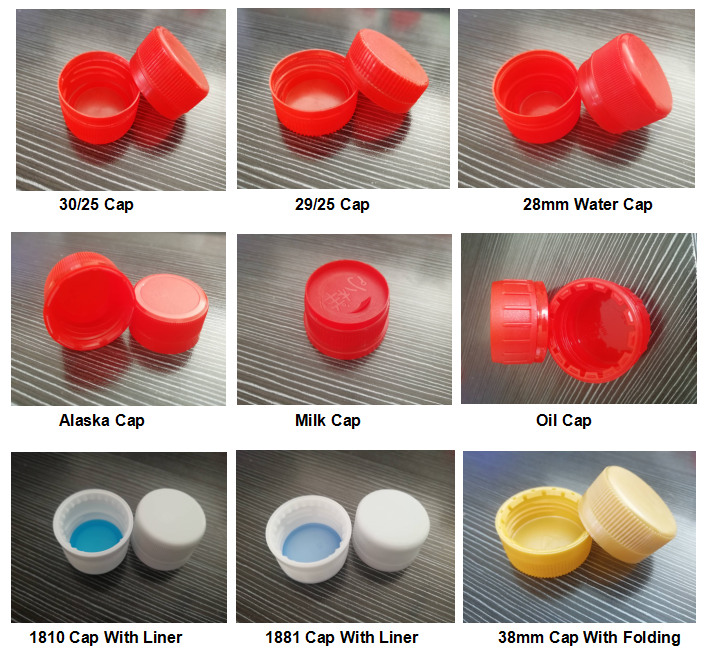

Bottle Cap Injection Machine is used for making the bottle cap . By changing the mould , you can make different diameter caps , easy to operate and easy to change the mould . With stable capacity and performance . RM-258 , max can fit 32cavities caps mould with POC30 size

Our reliable machinery will design the mould for you and suggest the best construction of the mould and matching the best suitable model machine .

Standard equipment

Injection unit

1) This Bottle Cap Injection Machine have Four injection pressures and speeds with three additional pressures and speeds .
2) Suck back function ,Cold start protection ,Pre-suck back function
3) Linear displacement transducer accurately monitor injection
position, providing optimum. injection accuracy and control
4) Heating Status indication

Clamping unit

1) Three clamp close and open pressures and speeds, Mold protection function , Hydraulic ejector stroke controlled by transducer ,Automatic hydraulic die-height adjustment driven by planetary
gears system
2) Adjustable support under moving platen , Automatic high pressure toggle lubrication with low oil level alarm
3) Linear displacement transducer controls clamping position

Other Part

1) Self-diagnostic function
2) Hydraulic unscrewing sequence
3) Hydraulic oil high temperature alarm
4) System pressure gauge , Shot counter and reset function
5) Malfunction alarm light
6) Emergency stop buttons placed both front and rear of this Bottle Cap Injection Machine to provide easy access
