Plastic Bottle Preform Injection Machine / Bottle Preform Injection
Molding
Features:
* Screw of big length to diameter ratio, uniform plastication and
high plasticizing capability
* Multi Step adjustment of injection speed or pressure
* Back pressure control of molten plastic
* Double toggle mold closing system with a large force
magnification ratio and a large stroke ratio
* Very good speed characteristic of high speed mold closing and low
pressure mold protection
* Various kinds of hydraulic ejectors
* Double proportional, load sensitive hydraulic circuit
* For big sizes of machines there are several oil pumps in a group,
use proportional valve to compensate the difference of pressure or
flow between pumps
* Triple interlock of mechanic, electric and hydraulic devices
* Hydraulic knockout core device and rotary mold-parting the work
piece device
* Using the computer, electric and hydraulic elements of famous
brands in the world
Plastic Bottle Preform Injection Machine / Bottle Preform Injection
Molding
Technical Data:
Item | Unit | Data |
Max. clamping force | KN | 3000 |
Max. opening force | mm | 590 |
(V×H)Space between tie bars | mm | 610×610 |
(min-max)Mould height | mm | 220-630 |
Max. daylight | mm | 1220 |
Ejector force | KN | 70.6 |
Ejector stroke | mm | 150 |
Ejector quantity |
| 9 |
Screw diameter | mm | 60 | 65 | 70 |
Screw L/D ratio | L/D | 22.7 | 21 | 19.5 |
Theoretical shot volume | cm3 | 848 | 995 | 1154 |
Plasticising weight(PS) | g | 772 | 905 | 1050 |
Injection pressure | Mpa | 207 | 176 | 152 |
Theoretical injection rate(PS) | g | 241 | 283 | 328 |
Plasticising capacity(PS) | g/s | 35.2 | 43.3 | 51.8 |
Screw torque | N.m | 2530 |
Max. screw rotate speed | r/min | 150 |
Injection stroke | mm | 300 |
Pump motor power | KW | 30 |
Pump pressure | Mpa | 16 |
Heating power | KW | 22 |
Heating zone |
| 5 |
Size | m | 6.7×1.75×2.25 |
Net weight | t | 11 |
International designation |
| 3000-1750 |
Techincal Parameters:
Plastic Bottle Preform Injection Machine / Bottle Preform Injection
Molding
A Injection Unit
•A07) Oil temperature indication
•A08) Adjustable such back before and after refilling
•A09) Auto sprue break
•A10) Linear transducer to control programmable injection position
•A11) Cold start screw prevention
•A12) Sliding Mechanism for hopper
•A13) Gas Nitrated hardened screw and Barrel
•A14) Screw back pressure con troll with pressure relief valve
•A15) Hand Operated Lubrication Unit
B. Clamping Unit
•B01) Five Point twin toggle locking system
•B02) Case Hardened toggle, Brackets and links with hardened
PIN & BUSH
•B03) Motorized mould height adjustment for quick mould change
•B04) Auto tonnage setting facility
•B05) Low pressure precise mould protection with pressure and time
setting
•B06) Five stage Mould closing
•B07) Five stage Mould opening
•B08) Hydraulic cushioning for consistent mould opening position
•B09) Linear transducer to control programmable clamp system
•B10) Electrical and hydraulic (Dump value) interlock safety gate
•B11) Moving platen with mechanical support with Teflon
•B12) Hydraulic Ejector with Multi stroke
•B13) Auto lubrication unit

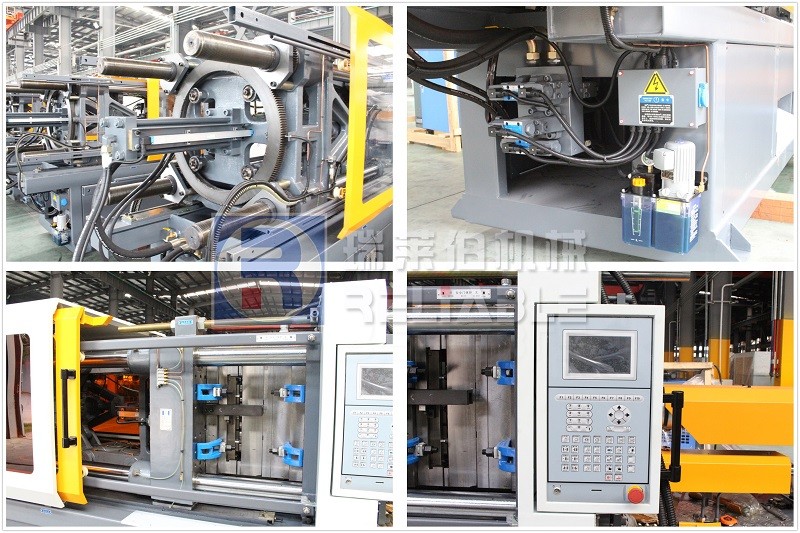

C. Machine Outlook :
Plastic Bottle Preform Injection Machine / Bottle Preform Injection
Molding

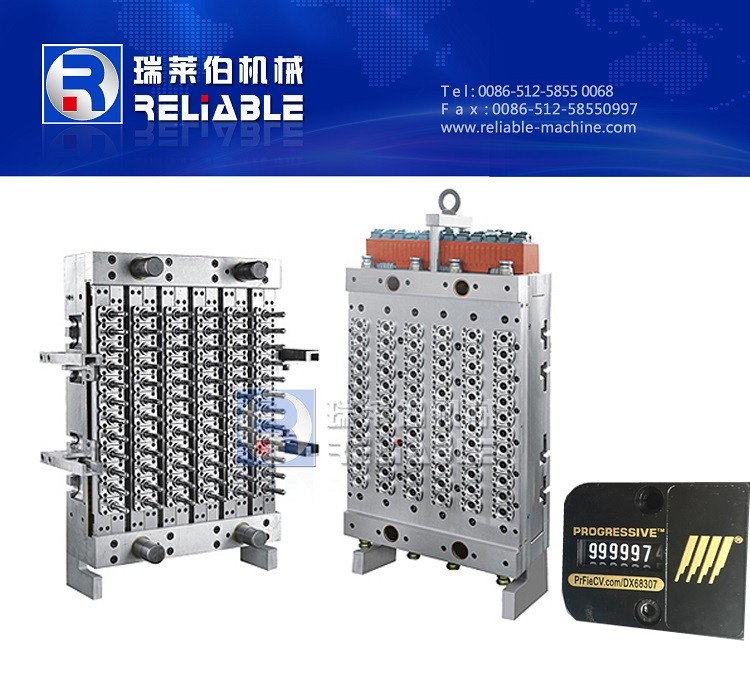

Mould Picture :
Plastic Bottle Preform Injection Machine / Bottle Preform Injection
Molding
Reliable Service :
• Your inquiry related to our product & price will be replied
within 24hours
• Well-trained & experienced staff are to answer all your inquiries
in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any
third party.
• Good after-sale service offered, please get back to us if you got
any questions.
