Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter

    Buy cheap Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter from wholesalers

    Buy cheap Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter from wholesalers
    • Buy cheap Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter from wholesalers
    • Buy cheap Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter from wholesalers

    Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter

    Ask Lasest Price
    Brand Name : Reliable
    Certification : CE ISO SGS
    Supply Ability : 20 Set/Sets per Month Plastic Bottle Small Blow Moulding Machine for Blowing Preform
    Price : Negotiable
    Model Number : RM-9A
    • Product Details
    • Company Profile

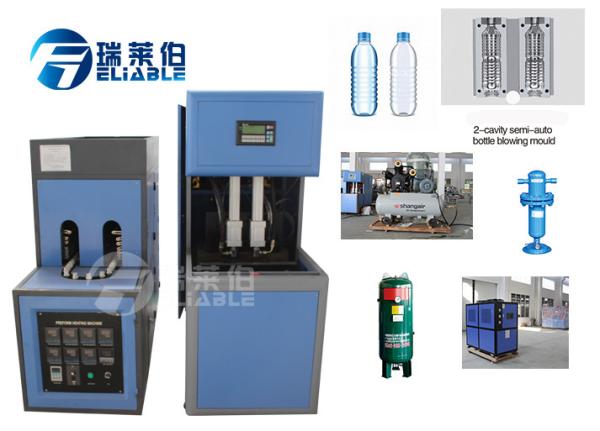

    Milk Plastic Bottle Blowing Machine 10 - 160 Mm Preform Inner Diameter

    Plastic Milk Bottle Small Blow Moulding Machine For Blowing Preform
    How to make finished bottle from PET raw material?
    1. Produce PET preform first with injection machine.
    2. Use Semi Automatic PET Bottle Blowing Molding Machine blow the PET preform to bottle.
    Tower power: 17.5 KW
    Capacity: 1000 BPH @ 500 ml

    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

    Plastic Milk Bottle Small Blow Moulding Machine For Blowing Preform

    1). High Intelligence:The machine can be controlled through touch screen and running status is shown on it.


    2). High Quantity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.

    3). High Speed: 800BPH

    4). No Contamination:Closed production zone, good self-lubrication system avoid contamination.

    5). Low Cost:Low consumption of electricity, air and water.

    6). High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.


    Plastic Milk Bottle Small Blow Moulding Machine For Blowing Preform


    Model
    RM-9A
    Container
    Product material
    PET
    Volume
    0.1L-2.0L
    Theoretical output
    1000PCS/H
    Preform length
    15mm-400mm
    Preform inner diameter
    Φ10mm-160mm
    Moulding
    Max.mould plate Dimension(L x W)
    400x460mm
    Max.mould thickness
    300mm
    Clamping force
    65KN
    Mould opening stroke
    38mm
    Machine size and weight
    Main machine (L x W x H)
    175*67*186cm
    Main machine weight
    600Kg
    Heater (L x W x H)
    187*63*145cm
    Heater weight
    250Kg
    Power
    17.5kw

    After-Sale Service :

    With excellent equipment , Professional Installation team overseas , Professional after sale service team and 24 hours hotline on line , Reliable has cooperated closely and win-win turkey project with well-known enterprises more than 50 countries and regions over the world .
    All Product will be supply after-sale service as follow :


    a. Installation guides before our engineer came
    b. Device Debugging in customer's factory
    c. Technical training to local customer engineers
    d. Q&A Consultant
    e. Client Review for the machine operation situation
    f. Production line maintenance
