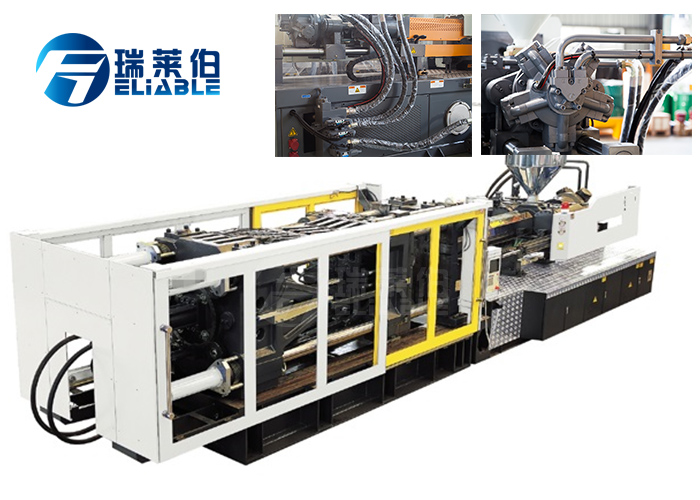

Servo Power Save Toggle Type Semi / Automatic Injection Moulding
Machine Maintenance
Features:
Injection moulding machine Adopting Europe technology,hydraulic
unit adopts proportional pressure and flow control,the pressure and
the speed can be adjusted,stable movement curve and gentle
shock,the computer is imported from Industry family. The LCD
displaying screen with high clarity has Chinese and English
language to use. Close-loop PID temperature control with the
advantage of high precision. The operating table of the injection
moulding machine have two safety, one is machine safety, another is
electrical safety, that ensures the operators’s safety.
Features
--With super big tie bar space and clamping stroke, with super big
eject stroke
--With big diagonal type clamping unit design, easy mould open and
the clamping unit running fast and smooth,
--Flexible front platen design, with little large-area
anit-deformation.
--With faster heating, and more precise temperature control
--Two paralyzed pillar guider design, Injection is more stable&
precise
--High-precision hydraulic oil filter system, oil temperature
/level instant monitoring
--High performance servo motor system, hydraulic components from
world famous brand, saves power by 50-80%. Servo motor system with
quick response, response time 30-50ms
--Versatile controller with excellent QC monitoring function,
temperature detecting function.
--Hydraulic routes with the fewest bents, welding and with the
shortest route
Technical Data for Small Sized Toggle Type Automatic Injection Moulding Machine
Maintenance
Item | Unit | Data |
Max. clamping force | KN | 950 |
Max. opening force | mm | 340 |
(V×H)Space between tie bars | mm | 360×360 |
(min-max)Mould height | mm | 135-380 |
Max. daylight | mm | 720 |
Ejector force | KN | 25.4 |
Ejector stroke | mm | 85 |
Ejector quantity | | 5 |
Screw diameter | mm | 30 | 35 | 40 |
Screw L/D ratio | L/D | 24.5 | 21 | 18.4 |
Theoretical shot volume | cm3 | 113 | 154 | 201 |
Plasticising weight(PS) | g | 103 | 140 | 183 |
Injection pressure | Mpa | 249 | 183 | 140 |
Theoretical injection rate(PS) | g | 67.5 | 91.8 | 120 |
Plasticising capacity(PS) | g/s | 8.3 | 12.5 | 18 |
Screw torque | N.m | 510 |
Max. screw rotate speed | r/min | 260 |
Injection stroke | mm | 160 |
Pump motor power | KW | 11 |
Pump pressure | Mpa | 16 |
Heating power | KW | 7.3 |
Heating zone | | 4 |
Size | m | 4.25×1.2×1.8 |
Net weight | t | 3.2 |
International designation | | 950-280 |
We Warmly Welcome Customers All Over The World To Our Company.
If You Have Interests In Our Products,Please Contract With Us ,Many
Thanks!
RELIABLE Service
The sample service
1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may
see the operation of the machines here . We will make the
arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the
machines from us ,we can tell you their contact information, you
can go to visit their factory.
Customized service
1.we can design the machines according your requirements(material
,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .
After-sales service
1.we will provide the bill of load on time to make sure you can get
the machine quickly
2.when you finish the Preparation conditions ,our engineer will go
to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.
