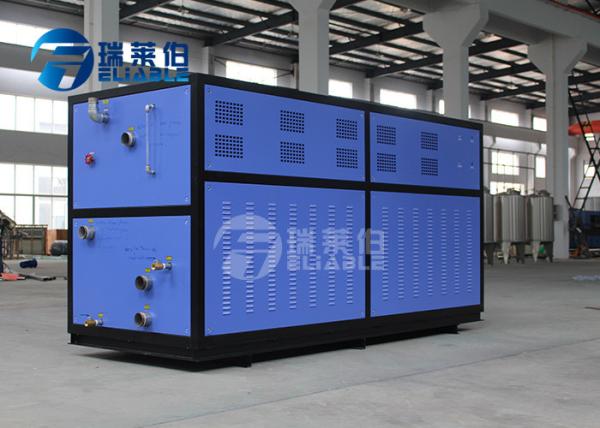

Packaged Type Air Cooled Industrial Water Chiller With 380V 50HZ
Brief Introduction
The injection molding chiller is commonly used in plastic
processing, injection molding and modules cooling. The main
function of this machine is to improve smoothness and reduce
surface marks, shrinks or deformation of plastics wares, which can
accelerate the process of plastic forming and improve molding
efficiency highly. The term refers to any chiller system that
contains all of the necessary components – the refrigeration
circuit, the reservoir, and the pump or pumps – within a single
footprint.
Product Parameter
Product Name | Water chiller |
Model | RM-03WCL |
4.4/38℃ Cooling capacity(Kcal/h) | 75800 |
Compressor | All-closed vorticity |
Compressor power(KW) | 2.5 |
Voltage | 380V/50HZ/3 phase, customized |
Chilled water pump power(KW) | 0.75 |
10℃ Max. flow rate of chilled water(L/min) | 55 |
Water tank capacity(L) | 38 |
Condensing water rate (L/min) | ≥36 |
Flow water inlet and outlet pipe | 1'' |
Dimension(L*W*H)(mm) | 850*560*870 |
Voltage | 380V-415V/3PHASE/50HZ |
warranty | 1 year |
Features& Advantages
1) High quality compressor
As a heart of water-cooling machine, we choose the original
compressor from European and USA with safety production inside, low
noise, energy saving and long life.
2) Evaporator as water tank style
Thick stainless steel Evaporator with automatic water supplying
device, the swell water tank during the installation will be saved,
easy to install and maintain, and also suitable for the case of big
temperature deviations, small flow.
3) High-cooling condenser
High speed punch, reliable turn slice, double turnover, has a
better compact between copper tube and swing slice, imported copper
tube welded with elbow which increase the air sealing, prevent the
leakage of cryogen, especially for the area where lack of water
source and hard water.
4) Machine configuration
Equipped with exact electric temperature controller which control
the water temperature between 3-50℃.inside which there is a
overload protector, high pressure abnormal protector, imported dry
filter and swell valve for stable running and easy repairing and
maintenance.
5) Pump configuration for option
Imported high efficiency pump is available according to customer's
requirement.
6) Multi function operation panel
There are current monitor, compressor on-off switch, pump on-off
switch, electric temperature controller, safety running alert light
on the panel.
Looking forward to hearing from you!
