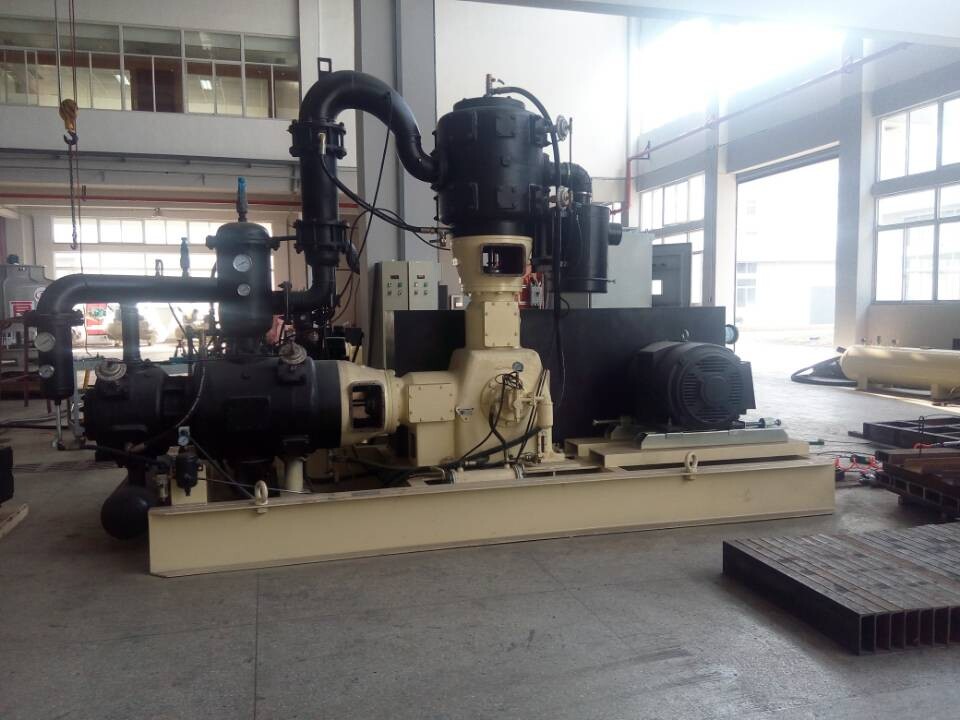

Factory Manufacturer 20HP Industrial Air Compressor Price For Sale
Product Description
Strengthening design for the main components, dimension of the
handpiece, weight all more than other factories, high safety, and
low speed, particularly suitable for heavy duty, long time
continuous operation, particularly high reliability and long
service life. Especially air cooling design and air flow design,
low exhaust temperature, not easy to carbon deposition and high
efficiency.
1. High pressure air compressor Shangair patent cylindrical
direct-flow valve is used by our compressors. The valve is made
from the stainless steel belt imported from Sweden and it is free
from fracture during the working life.
2. Air compressor aplies the integral cast chromium plating ring,
the working life is extended by 3 to 4 times.
3. Air compressor dymanic balancing technology. The vibration is
only as a quarter of the world standard.
4. The whole air compessor adopts rolling bearing without bearing
shell (Comprising connecting rod).
Product Parameter
| Dischange m3/min | Pressure Mpa | Motor kw | Rotational speed r/min | Size (L*W*H) mm | Weight kg |
| 1.2 | 3.0 | 15 | 670 | 17408796*1033 | 580 |
| 2.4 | 3.0 | 15*2 | 670 | 1430*1690*1050 | 1150 |
| 1.6 | 4.0 | 18.5 | 730 | 1140*1050*1430 | 540 |
| 3.2 | 4.0 | 18.5*2 | 730 | 2300*1100*1600 | 1150 |
| 4.8 | 4.0 | 18.5*3 | 730 | 3462*1100*1600 | 1750 |
| 6.4 | 4.0 | 18.5*4 | 730 | 4625*1100*1600 | 2360 |
Features& Advantages
1). Automatic pressure unloading system, ensure machine starting
without loading.
2). With exhaust check valve on outlet.
3). Removable type inlet silencing filter, 10 micron precision.
4). Normal inertia flywheel, 2 root V belt drive.
5). Splashing lubrication to all moving Parts.
6). Cast iron cylinder head, independent valve seat.
7). Automatic hoop valve piston rings, big flow, more action, high
efficiency.
8). World famous brand rolling bearing, ensure the stable operation
unit.
9). Enough space between the cylinder and the crankcase design,
avoid friction between connecting rod, moving parts and crankcase.
Pre-sales service
1). Inquiry and consulting support.
2). Sample testing support.
3). View our factory.
After-sales service
1). Training how to install the machine, training how to use the
machine.
2). Engineers available to service machinery overseas.
