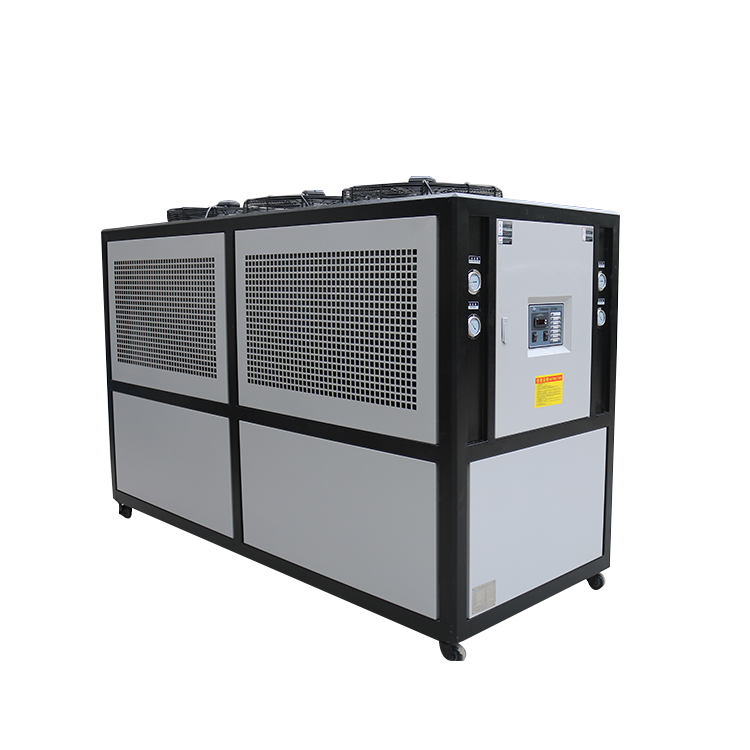

Blue Type 20HP Water Cooled Chiller For Injection Molding Machine
Product Description
The term “portable water cooled chillers” refers to the basic configuration of the system, use a single
closed-loop design for pressurized refrigerant. The term refers to
any chiller system that contains all of the necessary components –
the refrigeration circuit, the reservoir, and the pump or pumps –
within a single footprint.
Product Parameter
Product Name | Water chiller |
Model | RM-03WCL |
4.4/38℃ Cooling capacity(Kcal/h) | 75800 |
Compressor | All-closed vorticity |
Compressor power(KW) | 2.5 |
Refrigerant | R22 |
Chilled water pump power(KW) | 0.75 |
10℃ Max. flow rate of chilled water(L/min) | 55 |
Water tank capacity(L) | 38 |
Condensing water rate (L/min) | ≥36 |
Weight | 180KG |
Dimension(L*W*H)(mm) | 850*560*870 |
Voltage | 380V-415V/3PHASE/50HZ |
Safety Protection | Water pump interlock protection/leakage protection/overpressure and
anti-phase protection/ refrigerant abnormality protection/
compressor over the temperature protection / and lock of water
protection. |
Product Application
The air-cooled chiller is mainly used to cool the heating
components of the equipment to ensure that the equipment operates
normally at a constant temperature. Plastic processing machinery
mold cooling can greatly improve the surface finish of plastic
products, reduce the surface marks and internal stress of plastic
products, so that the product does not shrink, deformation,
facilitate the release of plastic products, accelerate product set,
thereby greatly improving the plastic molding Machine production
efficiency.
Detailed Features
1). Famous brand new compressors, high efficient shell condensers
and evaporators-excellent cooling, quiet with low electric
consumption.
2). P.I.D. Microprocessor control-easy to operate, accurately
maintains temperature range from 3℃ to 50℃.
3). Special open type reservoir tank with stainless steel-easy to
clean and maintain.
4). Well designed and reasonable pipelines-ensures power supply and
saves energy.
5). Current-overload protector, high-and-low pressure switches,
electronic time delayer, fault display system-safe and durable.
6). Liquid crystal display showing temperatures of outlet and inlet
chill water-provides visualized and direct setting.
7). Single, double or quadruple compressors combination
available--economical and efficient.
8). Industrial designed-elegant and ergonomic
9). The blower with outer rotor axis can reduce operating noise
while radiating the heat efficiently, and reduce the impact to its
surrounding.
